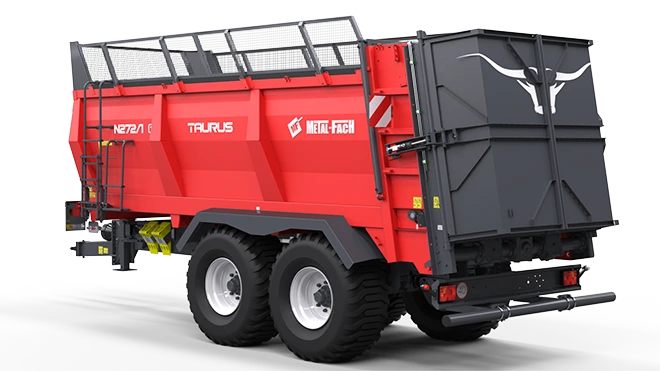

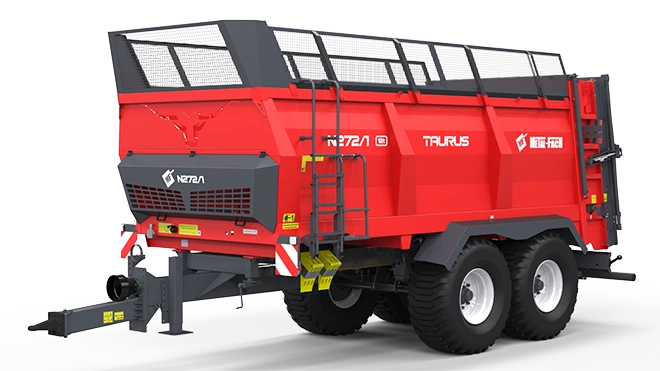

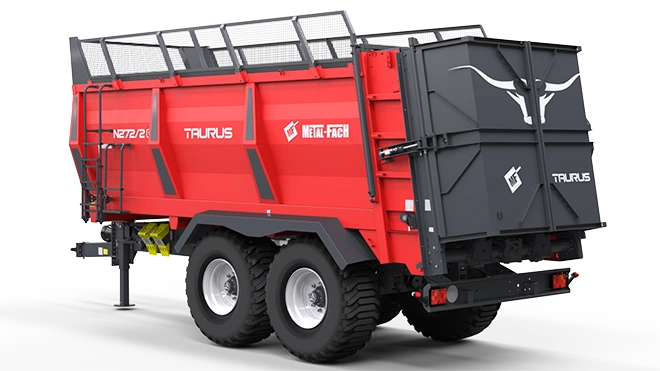

      N272 TAURUS Tandem Manure Spreader

      Technical GVW

      17920-18360 kg

      Technical load capacity

      12 000 kg

      Cargo box capacity

      12,6 m3

      GVW (EU homologation)

      16000*

      EU homologated load capacity

      11500 - 13650**

      Capacity with 0.5m extensions

      17,6 m3

      Technical GVW

      20160-20600 kg

      Technical load capacity

      14 000 kg

      Cargo box capacity

      13,8 m3

      GVW (EU homologation)

      18000*

      EU homologated load capacity

      13200 - 14990**

      Capacity with 0.5m extensions

      18,8 m3

      Animation 360o

      Take a closer look

      Poznaj Taurusa z każdej strony, dzięki animacji 360o.

        Tandem type suspension

        VIKING spreaders use tandem spring suspension. The 18T Viking version has a steering axle as a standard.

        Hydraulically sprung hitch

        The hydraulically sprung hitch makes it easy to level out the entire spreader. This hitch reduces the dynamic load on the drawbar eye during operation. This improves the driving comfort when spreading manure.

        Hydraulic extensions

        The N272 Viking series spreaders are fitted with solid extensions made of 2 mm thick sheet metal, suitably reinforced with steel profiles. The side extensions can be tilted to any side, left or right, depending on which side of the spreader is used for loading. The versatility of these side extensions results from the fact that we can lower the loading height, without having to dismantle the extensions.

        Spreading adapter

        2-rotor VERTI / ZENI

        The N272 Viking manure spreader has a 2-rotor spreading adapter fitted as standard. In response to the changing needs and expectations of modern farms, we have introduced two types of adapters.

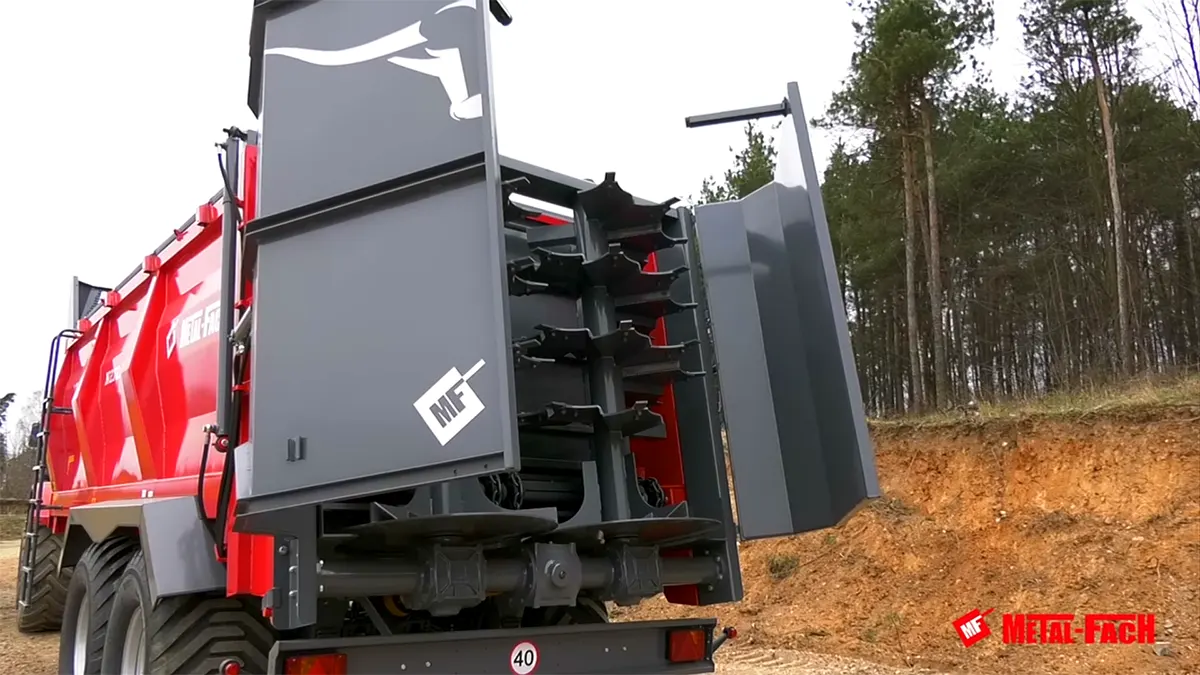

        1. VERTI vertical adapter with a width of 2.0m. The main working tips are replaceable blades bolted to the rotor segments. When rotating, the rotors shred the material feed and eject it to the back and the sides. The bottom section of the rotors features bladed discs, which increase the spreading width of the material.

        2. ZENI horizontal disc adapter.

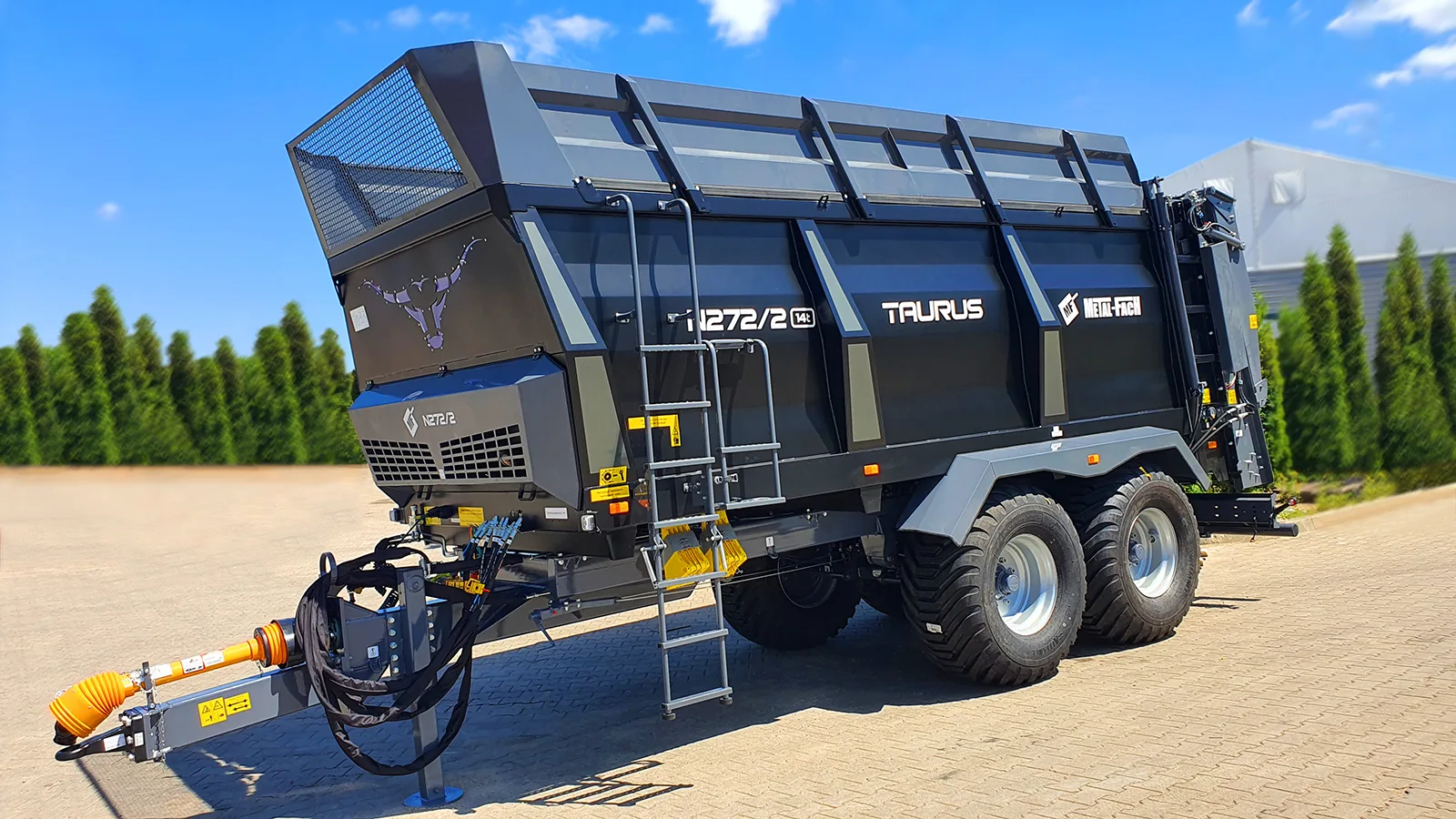

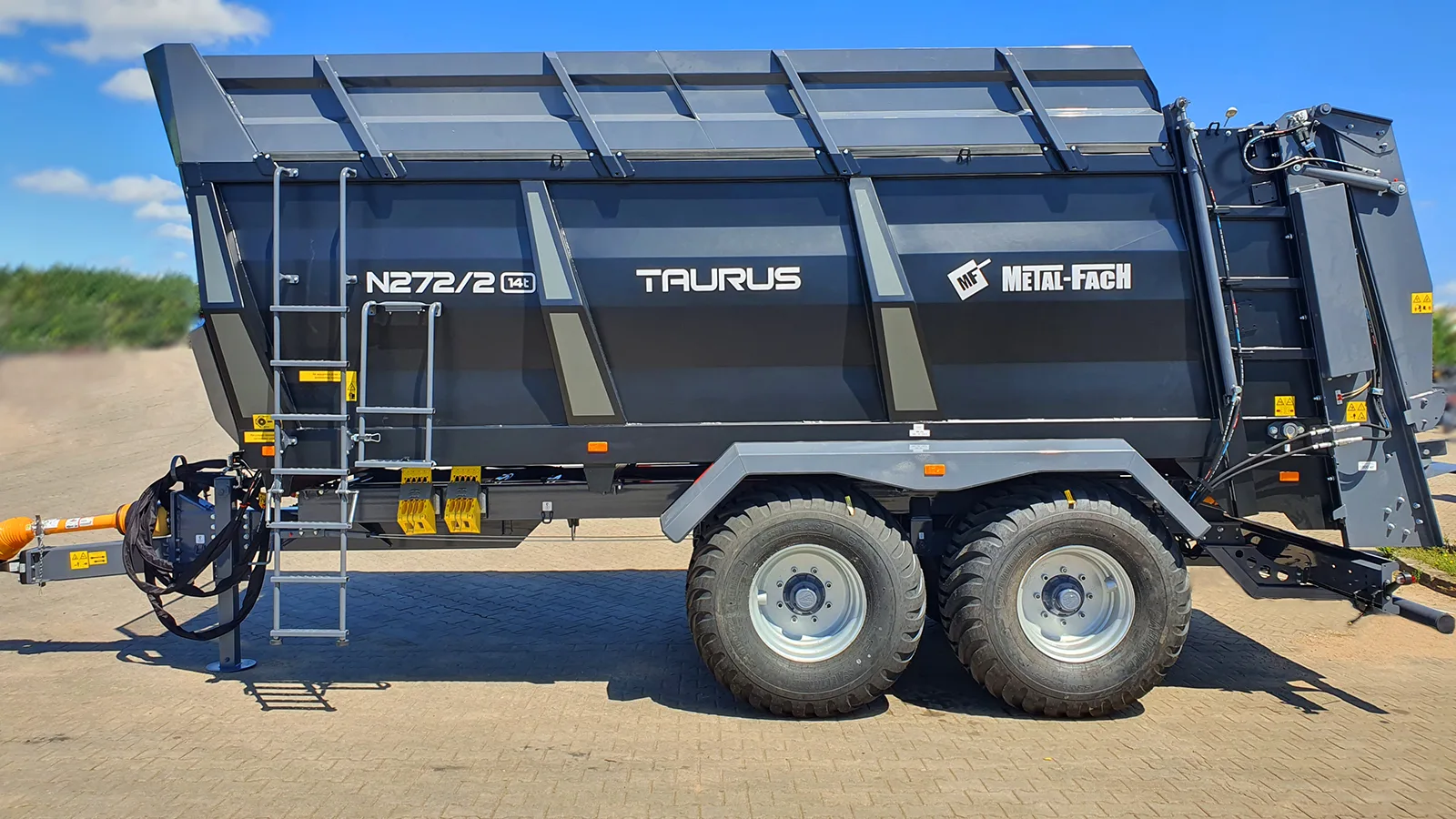

        Adapter tarczowo-poziomy ZENI

        W rozrzutnikach N272 Taurus można zamontować adapter tarczowo-poziomy 2-wirnikowy ZENI. W dolnej części znajduje się przekładnia, na której są osadzone talerze rozrzucające. Głównymi narzędziami roboczymi są wymienne ostrza przykręcone do poziomych wirników. Wirniki, obracając się rozdrabniają podawany materiał, który jest kierowany przez osłonę adaptera na talerze rozrzucające. Obracające się talerze wyrzucają rozdrobniony materiał do tyłu i na boki.

        Floor conveyor

        Each manure spreader features a chain floor conveyor. The speed of the floor conveyor is controlled by operating a knob on the hydraulic flow control valve. To meet the expectations of our customers, Metal-Fach has introduced electronic flow controllers operated with a control panel in the tractor cab. It is no longer required to leave the tractor to adjust the floor conveyor speed directly at the spreader.

        Mechanical deflectors

        An adaptor cover and permanently screwed side plates are fitted as standard. The side metal sheet deflectors reduce the side throw range, but their primary function is to guard the walls. Adapter cover (deflectors) lifts automatically when the rear wall (slider) is raised.

        The working lights

        To improve the implement’s operating comfort, the Viking spreaders feature two work lights illuminating the adapter’s work area. This helps working after dark. A lamp is also located inside the shell to closely inspect the volume of material.

        Cargo box latch

        Hydraulic vertical tailgate

        The N272 Viking manure spreaders feature a vertical slide gate for the load body. It protects the adapter rotors from clogging during loading, and prevents the material from falling out in transport. The slide gate can control the application rate of loose material fed to the spreading adapter in operation.

        The slide gate is especially supported with the heaviest gauge at its bottom to prevent deformation by the pressure of the material against the slide gate panel and its bottom edge. The slide gate lifts to open fully over Tecamid slides to minimise friction and retain a sealed passage of loose material in transport. The slide gate bottom features a rubber strip profiled around a chain to facilitate better conformity in contact with the body floor and an improved seal.

        Multifunctional working tool

        Use the VIKING as a transporter for heavy loads

        Multiple functions in one machine? By all means

        Once the spreader adapter is removed and the CARGO attachment is fitted, the VIKING spreader is transformed into a trailer for heavy loads. The trailer can be used to carry various types of crops. This gives it a versatile use on the farm and can function all year round.

        Features

        Discover other benefits

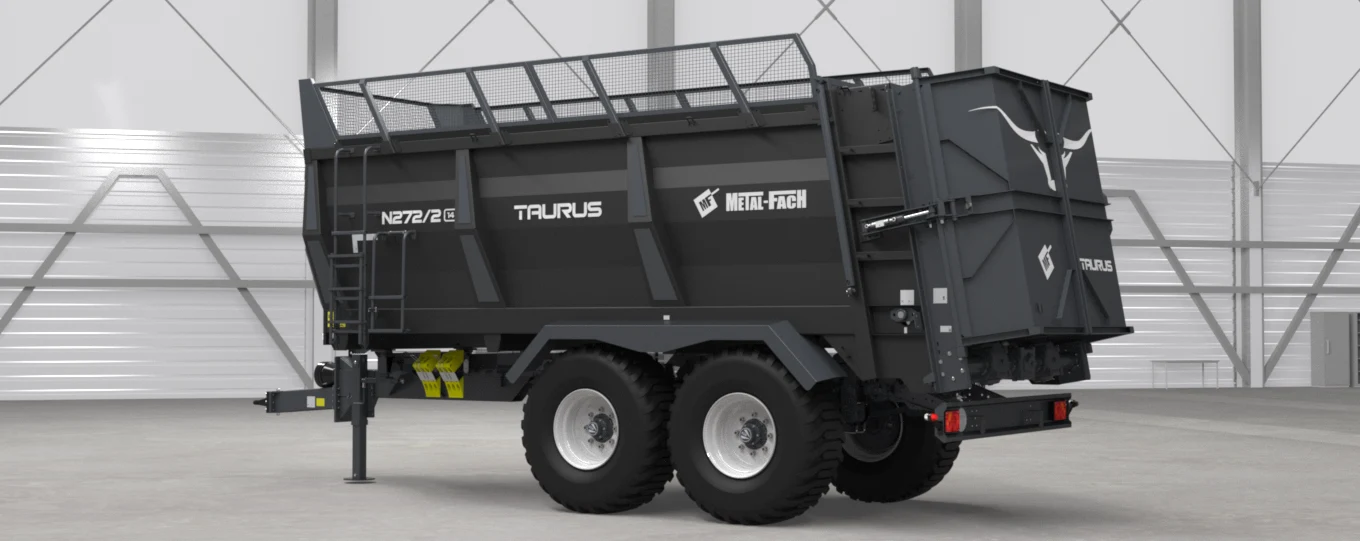

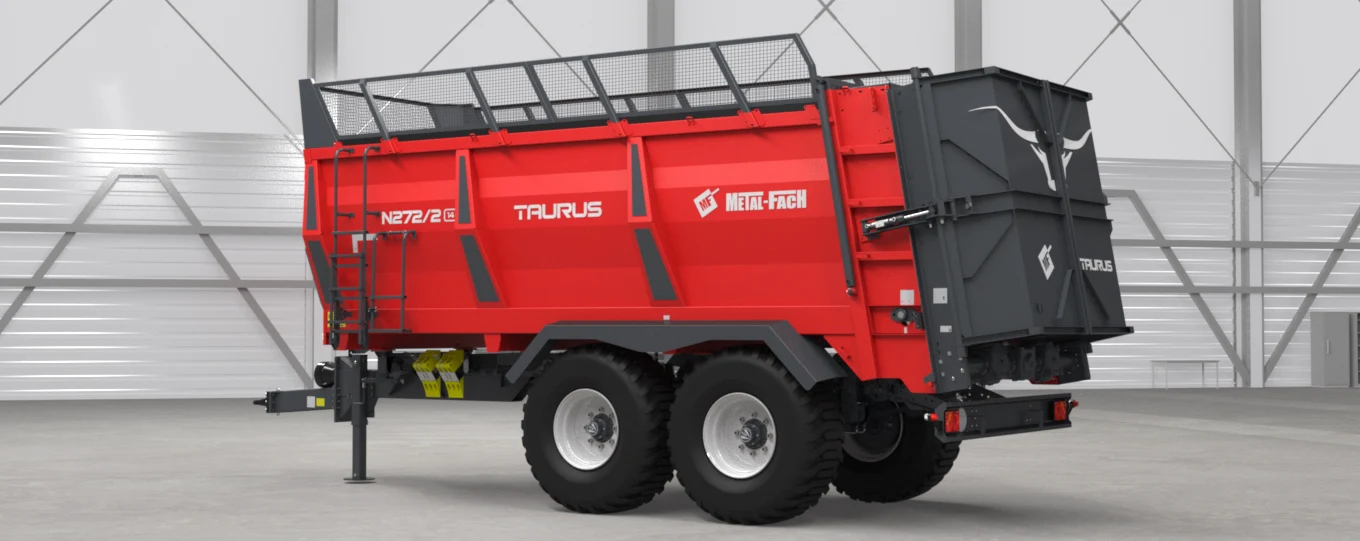

        Customise

        Compare and choose your spreader’s colour

        The equipment shown in the photos may vary depending on the version chosen.

        Technical specification

        Taurus

        Model of machineN272/1N272/1
        Type of homologation-EU
        Transport speed (max.) [km/h]4040
        Technical GVW [kg]17920-18360***16000*
        GVW [kg]17920-18360***16000*
        Technical load capacity (field) [kg]1200012000 - 13650
        Transport load capacity [kg]1200011500 - 13650**
        Weight [kg]6160 - 6600***5350 - 7500***
        Vertical load on the hitch eye (max) [kg]30003000
        Cargo box capacity (without extensions/extensions 0.5m) [m3]12,612,6
        Length / Width / Height of the cargo space [mm]5000 / 2000 / 12805000 / 2000 / 1280
        Overall dimensions without extensions Length / Width / Height [mm] ****8250 / 2545 / 33308250 / 2545 / 3330
        Height of the cargo floor from the ground [mm] ****15101510
        Loading height [mm] ****27902790
        Tires****550/60-22,5”550/60-22,5”
        Power requirements (min.) [KM]120120
        Model of machineN272/2N272/2
        Type of homologation-EU
        Transport speed (max.) [km/h]4040
        Technical GVW [kg]20160-20600***18000*
        GVW [kg]20160-20600***18000*
        Technical load capacity (field) [kg]1400014000 - 14990
        Transport load capacity [kg]1400013200 - 14990**
        Weight [kg]6160 - 6600***6010 - 7800***
        Vertical load on the hitch eye (max) [kg]30003000
        Cargo box capacity (without extensions/extensions 0.5m) [m3]13,813,8
        Length / Width / Height of the cargo space [mm]5000 / 2000 / 14005000 / 2000 / 1400
        Overall dimensions without extensions Length / Width / Height [mm] ****8250 / 2545 / 34508250 / 2545 / 3450
        Height of the cargo floor from the ground [mm] ****15101510
        Loading height [mm] ****29102910
        Tires****550/60-22,5”550/60-22,5”
        Power requirements (min.) [KM]120120

        * In European homologation, conducted according to EU Regulation 167/2013, only axle loads are specified as GVW
        ** The load capacity for EU homologation is calculated using the formula:
        GVW + Hitch load - Tare weight = Load capacity
        *** depending on the equipment
        **** standard equipment

        Standard equipment

        • Cargo box latch
        • 2-drum vertical adapter
        • Hydraulic deflectors
        • Ladder
        • drawbar eye Ø50mm fixed
        • Wide-angle PTO shaft
        • 2-line pneumatic breaks
        • Wheels 550/60-22.5
        • 4-section hydraulic
        • Hydraulic parking jack
        • Side walls protected with rubber strips
        • Wheel chocks
        • Underrun protection rear beam
        • Electronically controlled floor (wired remote control +/-)

        Optional equipment

        • Extension 0,5m (full)
        • Extension 0,5m (net)
        • Extension (net) 0,8m
        • Hydraulic brakes – extra charge*
        • Hydraulic-pneumatic brakes – extra charge*
        • Wheels 600/55-22,5 – extra charge*
        • Wheels 650/55-26,5 – extra charge*
        • Wheels 710/45-22,5” – extra charge*
        • Automatic brake force regulator – ALB valve – extra charge* – required for EU approval
        • Drawbar eye Ø 40 – extra charge*
        • Rotary drawbar eye Ø 50 – extra charge*
        • Ball drawbar eye K80 – extra charge*
        • CARGO volume attachment – without a two-speed gearbox
        • CARGO volume attachment – with a two-speed gearbox
        • 4-section divider with hydraulics, set – extra charge*
        • Electronic precise floor control (knob for smooth speed control)
        • Extra charge for EU approval
        • Color other than standard – extra charge
