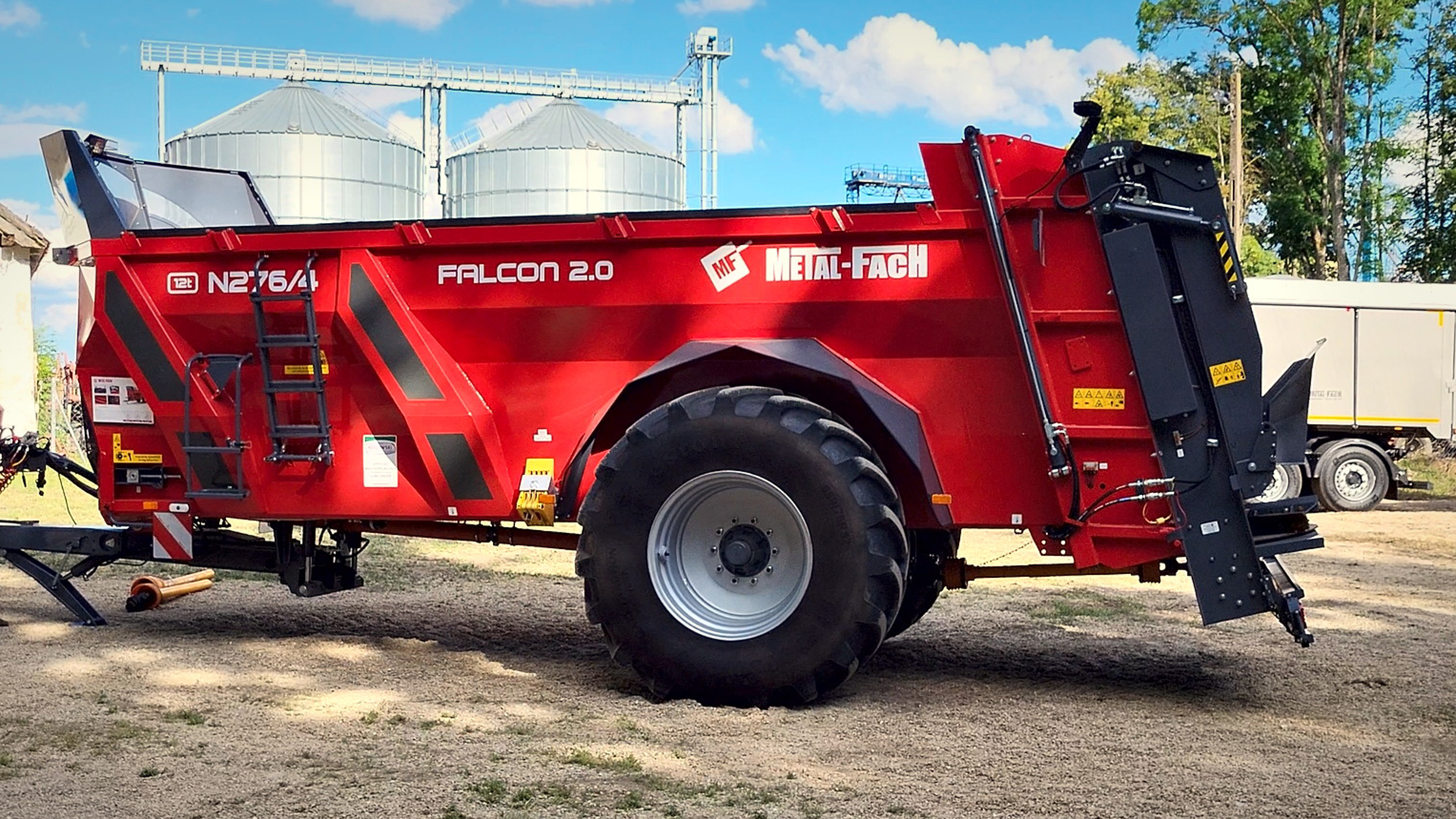

N276 FALCON One axle Manure Spreader
Technical GVW
11450 kg
Technical load capacity
6000 kg
Cargo box capacity
7,7 m3
GVW (EU homologation)
9650* kg
EU homologated load capacity
6150-8350** kg
Capacity with 0.5m extensions
11,7 m3
Technical GVW
13520 kg
Technical load capacity
8000 kg
Cargo box capacity
9,5 m3
GVW (EU homologation)
9650* kg
EU homologated load capacity
6050-8300** kg
Capacity with 0.5m extensions
13,5 m3
Technical GVW
16220 kg
Technical load capacity
10000 kg
Cargo box capacity
11,7 m3
GVW (EU homologation)
9650* kg
EU homologated load capacity
5250-7450** kg
Capacity with 0.5m extensions
16,4 m3
Technical GVW
18280 kg
Technical load capacity
12000 kg
Cargo box capacity
13,4 m3
GVW (EU homologation)
10000* kg
EU homologated load capacity
5550-7750** kg
Capacity with 0.5m extensions
18,1 m3
Technical GVW
20330 kg
Technical load capacity
14000 kg
Cargo box capacity
15,1 m3
GVW (EU homologation)
10000* kg
EU homologated load capacity
5500-7700** kg
Capacity with 0.5m extensions
19,8 m3
Animation 360o
Take a closer look
Explore the FALCON from all sides with a 360o animation.
Single-axle chassis
All models of the FALCON series manure spreader feature single-axle chassis:
- Improved manoeuvrability (with a narrow load body)
- Higher tractor rear downforce and good traction
- Lower tire wear
- Low tire engagement into the ground (large wheels)
- Perfect for meadows and fields
- Lower power demand (10-20% less than with tandem suspension)
- Easier rolling on the ground (large wheels)
- Wider optional tires available
Longitudinal spring suspension hitch
- Reduces the dynamic loads on the drawbar eye while in operation
- Improved driving comfort during application job
- The structural design provides a lower loading level of the implement
Hydraulic scissor parking jack
The N276 spreaders feature a mechanical parking jack. The hydraulic scissor parking jack is optional for the FALCON series spreaders.
- Easy lifting of a heavy spreader
- Smooth lift control when coupling to the tractor
- Wider motion control range
- Higher ground clearance
Spreading adapter
Vertical 2-rotor
All N276 series manure spreaders are provided with a 1.5 m wide vertical 2-rotor spreading adapter as standard. The main working tips are replaceable blades bolted to the rotor segments. When rotating, the rotors shred the material feed and eject it to the back and the sides. The bottom section of the rotors features bladed discs, which increase the spreading width of the material.
- Good performance with fermented and non-fermented manure
- Great for dry manure
- Less clogging for improved operation during spreading applications
- Spreading width: 8 m max; working range: 12 m – maximum spreading width
- 50 x 10 mm flat bar blades (HARDOX 450 steel)
- Swept blades (HARDOX steel 450) bolted alternately with the flat bar blades
- 4 disc blades to the bottom and the sides, replaceable, bolted (HARDOX 450), swept at 10°
- 2 cord cutting bars for easy removal of cords wound on the rotor tube
Oferta adapterów
W rozrzutnikach serii N276 Falcon opcjonalnie można zamontować inny rodzaj adaptera w zależności od potrzeb klienta.
Adapter wersja XL
Adapter XL o szerokości 1,5m przystosowany jest do zbitego obornika.
- łopatki płaskie "mocowane w klatkach" z blachy 16 mm S355
- 4 łopatki gięte odkręcane z blachy 12 mm S355 (przy talerzy dolnym)
- dodatkowe pręty pionowe ułatwiające przecinanie sznurka nawiniętego na rurę wirnika
Adapter z obrotowymi łopatkami
- dzięki obrotowym łopatkom przy talerzach, świder jest bardziej odporny na uszkodzenia spowodowanymi kamieniami czy większymi kawałkami drewna
- dobrze pracuje przy przefermentowanym, jak i nieprzefermentowanym oborniku
- bardzo dobrze sprawdza się też przy suchym oborniku
- szerokość rozrzutu – do 8m zakres roboczy; 12m – zakres pasa rozrzutu,
- ostrza z płaskownika 50x10 (stal HARDOX 450)
- ostrza odgięte (stal HARDOX 450) przykręcane naprzemiennie pomiędzy ostrzami z płaskownika
- 3 łopatki talerza dolne obrotowe (wahliwe) - wymiennie
- pręty ułatwiające przecinanie sznurka nawiniętego na rurę wirnika
Floor conveyor
Each manure spreader features a chain floor conveyor. The speed of the floor conveyor is controlled by operating a knob on the hydraulic flow control valve. To meet the expectations of our customers, Metal-Fach has introduced electronic flow controllers operated with a control panel in the tractor cab. It is no longer required to leave the tractor to adjust the floor conveyor speed directly at the spreader.
Deflectors + mesh guard
The standard equipment features a spreading adapter mesh guard, which is removable by hand, with permanently attached side metal sheet deflectors. The side metal sheet deflectors reduce the side throw range, but their primary function is to guard the walls.
Deflektory
Opcjonalnie montowana osłona tylna spełnia dwie funkcje:
- ogranicza wyrzut boczny
- osłania ostrza adaptera, dzięki czemu możemy wyjeżdżać na drogi publiczne
Otwieranie osłon odbywa się za pomocą hydrauliki z kabiny ciągnika, a dzięki zaworowi w prawej tylnej części rozrzutnika możemy ustawiać prawy deflektor do oczekiwanej pozycji.
Rear light guards
The N276 FALCON series of manure spreaders features rear light guards, which close automatically when the slide gate lifts open. The guards protect the lights from dirt while spreading manure.
Cargo box latch
Hydraulic vertical tailgate
The N276 Falcon manure spreaders feature a vertical slide gate for the load body. It protects the adapter rotors from clogging during loading, and prevents the material from falling out in transport. The slide gate can control the application rate of loose material fed to the spreading adapter in operation.
The slide gate is especially supported with the heaviest gauge at its bottom to prevent deformation by the pressure of the material against the slide gate panel and its bottom edge. The slide gate lifts to open fully over Tecamid slides to minimise friction and retain a sealed passage of loose material in transport. The slide gate bottom features a rubber strip profiled around a chain to facilitate better conformity in contact with the body floor and an improved seal.
Customise
Compare and choose your spreader’s colour
The equipment shown in the photos may vary depending on the version chosen.
Technical specification
The Falcon tailor-made for you
| Model of machine | N276/1 | N276/1 |
|---|---|---|
| Type of homologation | - | EU |
| Transport speed (max.) [km/h] | 40 | 30 |
| Technical GVW [kg] | 11450 | 9650* |
| GVW [kg] | 11450 | 9650* |
| Technical load capacity (field) [kg] | 6000 | 6150 - 8350** |
| Transport load capacity [kg] | 6000 - 6650** | 6150 - 8350** |
| Weight [kg] | 4800 - 5450*** | 4300 - 6500*** |
| Vertical load on the hitch eye (max) [kg] | 3000 | 3000 |
| Cargo box capacity (without extensions/extensions 0.5m) [m3] | 7,7 | 7,7 |
| Length / Width (bottom-top) / Height of the cargo space [mm] | 4725 / 1500-1950 / 1050 | 4725 / 1500-1950 / 1050 |
| Overall dimensions without extensions Length / Width / Height [mm] **** | 7700 / 2580 / 2970 | 7700 / 2820 / 2970 |
| Height of the cargo floor from the ground [mm] **** | 1240 | 1240 |
| Loading height [mm] **** | 2290 | 2290 |
| Tires**** | 520/85R38 | 520/85R38 |
| Power requirements (min.) [KM] | 80 | 80 |
| Model of machine | N276 | N276 |
|---|---|---|
| Type of homologation | - | EU |
| Transport speed (max.) [km/h] | 40 | 30 |
| Technical GVW [kg] | 13520 | 11900* |
| GVW [kg] | 13000 | 9650* |
| Technical load capacity (field) [kg] | 8000 | 6150 - 8350** |
| Transport load capacity [kg] | 7480 - 8140** | 6050 - 8300** |
| Weight [kg] | 4860 - 5520*** | 4350 - 6600*** |
| Vertical load on the hitch eye (max) [kg] | 3000 | 3000 |
| Cargo box capacity (without extensions/extensions 0.5m) [m3] | 9,5 | 9,5 |
| Length / Width (bottom-top) / Height of the cargo space [mm] | 4725 / 1500-1950 / 1250 | 4725 / 1500-1950 / 1250 |
| Overall dimensions without extensions Length / Width / Height [mm] **** | 7700 / 2580 / 3140 | 7700 / 2820 / 3140 |
| Height of the cargo floor from the ground [mm] **** | 1240 | 1240 |
| Loading height [mm] **** | 2490 | 2490 |
| Tires**** | 520/85R38 | 520/85R38 |
| Power requirements (min.) [KM] | 90 | 90 |
| Model of machine | N276/3 | N276/3 |
|---|---|---|
| Type of homologation | - | EU |
| Transport speed (max.) [km/h] | 40 | 30 |
| Technical GVW [kg] | 16220 | 14400* |
| GVW [kg] | 13000 | 9650* |
| Technical load capacity (field) [kg] | 10000 | 10000 |
| Transport load capacity [kg] | 6780 - 7200** | 5250 - 7450** |
| Weight [kg] | 5800 - 6220*** | 5200 - 7400*** |
| Vertical load on the hitch eye (max) [kg] | 3000 | 3000 |
| Cargo box capacity (without extensions/extensions 0.5m) [m3] | 11,7 | 11,7 |
| Length / Width (bottom-top) / Height of the cargo space [mm] | 5725 / 1500-1950 / 1250 | 5725 / 1500-1950 / 1250 |
| Overall dimensions without extensions Length / Width / Height [mm] **** | 8750 / 2940 / 3140 | 8750 / 2940 / 3140 |
| Height of the cargo floor from the ground [mm] **** | 1240 | 1240 |
| Loading height [mm] **** | 2490 | 2490 |
| Tires**** | 580/70R38 | 580/70R38 |
| Power requirements (min.) [KM] | 100 | 100 |
| Model of machine | N276/4 | N276/4 |
|---|---|---|
| Type of homologation | - | EU |
| Transport speed (max.) [km/h] | 40 | 30 |
| Technical GVW [kg] | 18280 | 16450* |
| GVW [kg] | 13000 | 10000* |
| Technical load capacity (field) [kg] | 12000 | 12000 |
| Transport load capacity [kg] | 6720 - 7150** | 5550 - 7750** |
| Weight [kg] | 5850 - 6280*** | 5250 - 7450*** |
| Vertical load on the hitch eye (max) [kg] | 3000 | 3000 |
| Cargo box capacity (without extensions/extensions 0.5m) [m3] | 13,4 | 13,4 |
| Length / Width (bottom-top) / Height of the cargo space [mm] | 5725 / 1500-1950 / 1400 | 5725 / 1500-1950 / 1400 |
| Overall dimensions without extensions Length / Width / Height [mm] **** | 8750 / 2940 / 3290 | 8750 / 2940 / 3290 |
| Height of the cargo floor from the ground [mm] **** | 1240 | 1240 |
| Loading height [mm] **** | 2640 | 2640 |
| Tires**** | 580/70R38 | 580/70R38 |
| Power requirements (min.) [KM] | 120 | 120 |
| Model of machine | N276/5 | N276/5 |
|---|---|---|
| Type of homologation | - | EU |
| Transport speed (max.) [km/h] | 40 | 30 |
| Technical GVW [kg] | 20330 | 18500* |
| GVW [kg] | 13000 | 10000* |
| Technical load capacity (field) [kg] | 14000 | 14000 |
| Transport load capacity [kg] | 6770 - 7070** | 5500 - 7700** |
| Weight [kg] | 6670 - 7070*** | 5500 - 7700*** |
| Vertical load on the hitch eye (max) [kg] | 3000 | 3000 |
| Cargo box capacity (without extensions/extensions 0.5m) [m3] | 15,1 | 15,1 |
| Length / Width (bottom-top) / Height of the cargo space [mm] | 5725 / 1500-1950 / 1550 | 5725 / 1500-1950 / 1550 |
| Overall dimensions without extensions Length / Width / Height [mm] **** | 8750 / 2940 / 3440 | 8750 / 2940 / 3440 |
| Height of the cargo floor from the ground [mm] **** | 1240 | 1240 |
| Loading height [mm] **** | 2790 | 2790 |
| Tires**** | 580/70R38 | 580/70R38 |
| Power requirements (min.) [KM] | 120 | 120 |
* In European homologation, conducted according to EU Regulation 167/2013, only axle loads are specified as GVW
** The load capacity for EU homologation is calculated using the formula:
GVW + Hitch load - Tare weight = Load capacity
*** depending on the equipment
**** standard equipment
Standard equipment
- Cargo box latch
- 2-drum adapter
- Ladder
- Drawbar eye Ø50mm
- 2-line pneumatic breaks
- wheels 520/85 R38 – N276/1, N276
- wheels 580/70 R38 – N276/3, N276/4, N276/5
- PTO shaft – N276/1, N276
- Wide-angle PTO shaft – N276/3, N276/4, N276/5
- 2-section hydraulics
- Parking jack (scissors type) – N276/3, N276/4, N276/5
- Parking jack (manually adjustable) – N276/1, N276
- Fixed deflectors
- Drawbar amortized with a longitudinal spring
- Electronic precise floor control (knob for smooth speed control) – N276/3, N276/4, N276/5
- Cover automatically lifted when raising the rear wall (slide)
- slide gate opening indicator – N276/3, N276/4, N276/5
- work lights – N276/3, N276/4, N276/5
Optional equipment
- Net extensions 0,4m
- Net extensions 0,6m
- Hydraulic deflectors with possibility of adjustment for vertical adapter 1,5m and 2m – 2 pcs – extra charge*
- Parking jack (scissors type) – extra charge* – N276/1, N276
- Drawbar eye Φ 40 – extra charge*
- Rotary drawbar eye Φ 50 – extra charge*
- Ball drawbar eye K80 – extra charge*
- wheels 580/70 R38 – 2 pcs. (N276/1, N276)
- wheels 650/75R32 – 2 pcs. (N276/3, N276/4, N276/5)
- Hydraulic brakes – extra charge*
- Wide-angle PTO shaft – extra charge* (N276/1, N276)
- Electronic precise floor control (knob for smooth speed control) – N276/1, N276
- Electronically controlled floor (wired remote control +/-) – N276/1, N276
- MF-S-Control – precision fertilization system with electro-valve block – DigiDevice (N276/3, N276/4, N276/5)
- MF-S-Control – precision fertilization system with electro-valve block – Isobus (N276/3, N276/4, N276/5)
- EU approval – extra charge*
- Color other than standard
