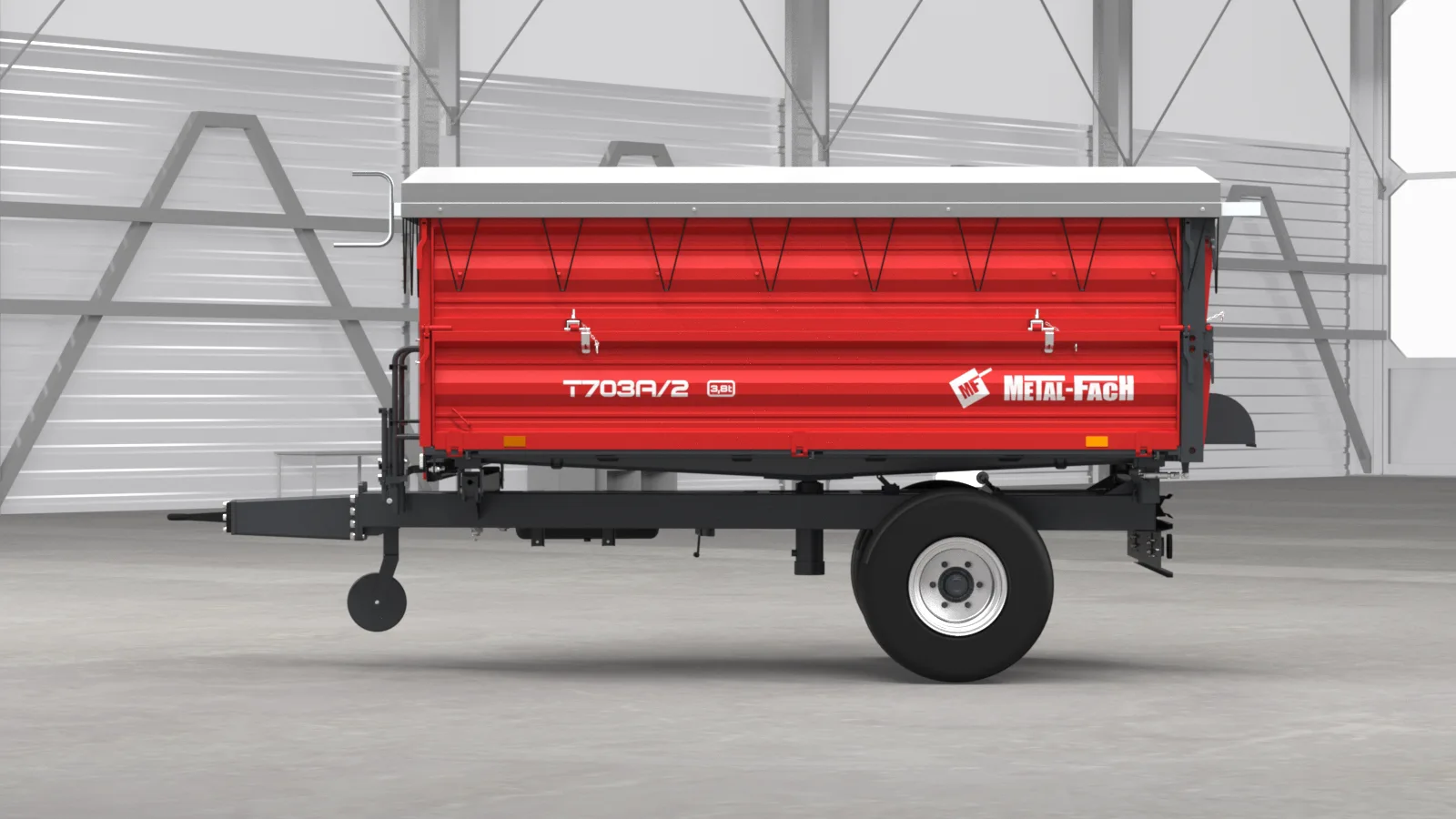

T703 Single Axle Agricultural Trailer

The T703 is larger and more versatile in the range of this type of single-axle trailers. Its single-axle running gear ensures good carriage conditions. Its 2 mm sideboards provide sufficient protection for the proper delivery of the material to be carried. Adequate structural rigidity and tightness, as well as low floor level are the features which make material carriage efficient and effective.


Lightweight

Thanks to the adequate thickness of sideboards and floor plus the construction based on open sections make the product lightweight, as well as solid and durable

Practical

The independent sideboard system allows the trailer to be unloaded on its three – rear, left and right – sides.
T703A_burta-500mm

Sideboard

Height – 500 mm The 2 mm sideboards provide sufficient protection for the proper conveyance of the transported material.
rynna szybra

Discharge chute

A discharge outlet with a chute in the back wall facilitates unloading bulk materials.
adapter zaczepu prosty oko fi40 mm

Drawbar with an adapter

Straight hitch adapter, Ø 40 mm eye
stopka podporowa z kolkiem

Support foot

The T703A trailer is equipped with a mechanical support foot with support wheel.
hamulec postojowy reczny

Parking hand-brake

przyczepa-rolnicza-jednoosiowa_T736_ogumienie

Tyres

10.0/75-15.3 18PR as standard The machine can be equipped with 400/60 15.5 wheels upon the customers’ request.
stelaz plandekowy z plandeka

Tarpaulin

The T703A can be equipped with a tarpaulin with a folding frame.
T703A_nadstawa-pelna

Extension (full) 500 mm

T703_nadstawa-siatkowa_700mm

Extension (net) 700 mm

Customised

The sideboards can be painted a different colour to the standard one upon the customers' request.

Technical Specifications

T703A
DMC [kg] 4650
Load Capacity[kg] 3800
Weight [kg] 1140
Total length / Total width / Total height [mm] 4570-4770 / 2150 / 930-2450
Length / Width / Height of cargo space [mm] 3340 / 1890 / 500
Tipper / tipping angle (rear/sides) three-side up to 38o
Cargo space height from ground [mm] 960
Capacity [m3] 3,2

STANDARD EQUIPMENT


  • side wall 500mm
  • central system of walls bolting
  • chute
  • draft pole with adapter
  • drawbar eye Φ40mm
  • mechanic parking jack with supporting wheel
  • hand parking brake
  • 1-line pneumatic brake
  • tyres 10,0/75,15,3 18PR

OPTIONAL EQUIPMENT


  • extension (full) 500 mm
  • extension (net) 700 mm
  • tarpaulin with frame
  • hydraulic brake - extra charge
  • 2-line pneumatic brake - extra charge
  • over-run brake - extra charge
  • version without brakes
  • wheels 400/60 15,5 - extra charge
  • color other than standard - extra charge
