Two-Axle Agricultural Trailer

T940 Tipping trailer

T940 two-axle drop-side trailers are versatile machines that will find use on almost every farm. The machine is characterized by precise workmanship, durability, and a reliable design.

Inquire about the product
Find a dealer
Description
Documents

T940 – The Ideal Tipper for Small and Medium-Sized Farms

The machine is characterized by precise workmanship, durability, and a reliable design. The T940 two-axle agricultural trailer has rich standard equipment, making it highly competitive. The trailer features a cargo box with a three-way tipping system. The chassis frame is triangular, made of closed profiles.

Chassis

Running Gear

The single-axle chassis used in the T703A trailer ensures excellent maneuverability and ease of handling, making work in the field easier.

Lightweight, solid construction

The T703A trailer features a lightweight yet robust construction that guarantees durability and stability. The lower frame and drawbar are made of high-grade steel, ensuring long service life.

Comfort guaranteed

The support leg with steel wheel allows for stable parking and easy maneuvering of the trailer. This solution enhances user comfort. Additionally, the trailer drawbar is equipped with a simple hitch adapter that enables height adjustment.

Reliable braking systems for complete safety

In the T703A/1 and T713A models, you'll find a single-line pneumatic brake. Optionally, a dual-line pneumatic brake can be installed. The T703A/2 model, on the other hand, is equipped with an overrun brake. It operates automatically – when the tractor brakes, the trailer runs onto it, activating the brakes, allowing for smooth and safe vehicle stopping.

Safety on the road

The rear bumper provides additional protection during transport. It protects against collisions, preventing damage to the trailer. LED lighting ensures low energy consumption, which translates into longer battery life and higher energy efficiency.

Dump body

Efficiency

The ability to carry loads with capacities ranging from 3.8 tons (in T703A/1 and T703A/2 models) to 5 tons (in the T713A model) ensures optimal working conditions for various tasks. The side profiles for the trailers are made of high-grade steel. The sides reinforce the entire structure, ensuring optimal rigidity and excellent sealing during the transport of various loads.

Low loading floor

The floor of the loading box, made of 4 mm thick steel, is located at a height of 980 mm (for T703A/1 and T703A/2 models). This facilitates loading and unloading of materials, minimizing operator effort and saving time.

Central system for walls bolting

The central locking system for the sides at the floor edge in side-board trailers guarantees secure closure of the loading box. The box achieves higher tightness even with very fine loads.

T713A side tipper trailer - side tipping

Functional trailer

Three-way tipping to the left, right, and rear – the T703A offers flexibility in unloading. The side walls and side extensions are single elements – each has a separate set of locks. This allows individual parts to be closed and opened independently and in any order.

Multifunctional

One of the key advantages of the T703A trailer is the ability to dismantle the side walls and posts, allowing the trailer to be converted into a transport platform. This solution enables the transport of bales, loads on box pallets, or Euro pallets. This increases its functionality and wide range of applications on the farm.

Precise unloading

The discharge chute with a gutter in the rear wall facilitates precise and controlled unloading of materials, which increases the efficiency of logistical operations and minimizes unloading losses.

Choose the color that suits you

Model T940

Box painting

The equipment shown in the photos may vary depending on the selected version.

T940/1 en

GVW
9400 kg
Payload
5 t
Capacity
5.92 m3

T940/1 en

GVW
10,860 kg
Payload
8 t
Capacity
5.92 m3

T940/2 en

GVW
10,500 kg
Payload
6 t
Capacity
7.09 m3

T940C/1

GVW
13,200 kg
Payload
10 t
Capacity
5.92 m3

T940C/2

GVW
13,200 kg
Payload
10 t
Capacity
7.09 m3
Check technical details

Trailer equipment

Front view of the red, dual-axle Metal-Fach T940/1 – 5-ton agricultural tipping trailer with hydraulic and pneumatic connectors.

What comes standard:

    • Side height 500 mm – T940/1
    • Side height 600 mm – T940/2
    • Central system for walls bolting
    • Wall bolting chain
    • Chute
    • Ladder
    • V-type drawbar 2000 + Towing eye Ø40mm
    • Hydraulic & electric installation for second trailer
    • 2-line pneumatic brake with installation to second trailer
    • Tires 400/60,15.5
    • Wheel chocks 2pcs.
    • LED Lights
    • Plastic fenders 4 pcs.
    • Rear hitch, manual

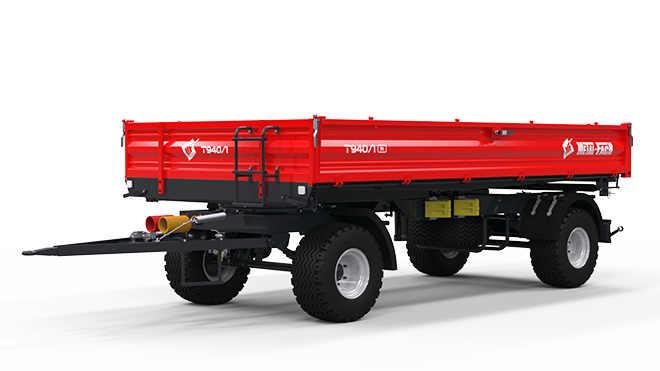

T940/1 Drop-Side Tipper Trailer

Additional equipment:

  • Full extension 500 mm – T940/2
  • Mesh extension 1000 mm
  • Tarpaulin with foldable frame – only with PL homologation
  • Working platform with balustrade
  • Reinforced V-type drawbar (2000 mm) Ø40
  • Extended V-type drawbar (2200 mm)
  • Y-type drawbar (2100 mm)
  • Extended Y-type drawbar (2350 mm)
  • 50mm towing eye for Y-type drawbar
  • Hydraulic brakes – only with PL homologation
  • Single-line pneumatic brakes – only with PL homologation
  • Automatic brake force regulator – ALB valve
  • Wheels 19.0/45-17, 4 pcs. – only with PL homologation
  • Basket for spare wheel
  • Spare wheel 400/60-15.5 – not available for T940/1 EU and T940/2 EU
  • Spare wheel 19.0/45-17 – only with PL homologation
  • Side crash guards
  • Color other than standard – extra charge
  • Automatic rear hitch

The side height of the T940/1 trailer is 500 mm, and for the T940/2 it is 600 mm. Optionally, you can equip the trailer with an impressive 1000 mm mesh extension or a 500 mm full extension, significantly increasing its capacity and allowing for the transport of larger quantities of cargo.

The side seals in the T940 series trailers provide solid protection for the cargo, preventing it from falling out during transport.

Centralny system ryglowania ścian przy krawędzi podłogi w przyczepach burtowych to gwarancja błyskawicznego i pewnego zamykania skrzyni ładunkowej.

T940 series drop-side trailers are versatile and not only perform excellently in transporting agricultural produce or other bulk materials but also allow for the transport of goods on Euro pallets, increasing their functionality and flexibility in various transport applications.

The rear tailgate features a discharge chute with a gutter – it allows for precise regulation of material flow, enabling easy and efficient unloading of harvests.

The standard equipment of T940 series drop-side trailers includes a hydraulic and electrical system for a second trailer, ensuring convenience and readiness to transport additional cargo without extra effort, which means greater efficiency and time savings in your agricultural operations.

The option of a spare wheel basket with a winch in T940 series drop-side trailers guarantees quick and easy wheel replacement in case of a breakdown, minimizing downtime and ensuring continuous operation during agricultural work.

Thanks to the diverse options available for the T940 drop-side trailer, you can customize it to your individual needs, which translates into greater efficiency and versatility in your agricultural work.

LED lighting – ensures low energy
consumption, which translates into longer battery life and higher energy efficiency.

Technical specification

* For European homologation, carried out according to EU regulation 167/2013, only axle loads are given as GVW
** Payloads for EU homologation are calculated according to the formula:
GVW + Vertical drawbar eye load (max) – unladen weight = Payload
GVW + Hitch load – unladen weight = payload
*** depending on equipment
