The trolley U910 is used to aggregate two types of cultivating machines in the “Mega” system.

Two U786 disc harrows or two U457 cultivators can be mounted on the same carrier (on the three-point hitch). In case of sudden changes in moisture and soil compactness the cultivators can work with smaller tractors as two independent machines.

U910

Contact us

Questions? We are here to answer your questions.

    U910

    Contact us

    Questions? We are here to answer your questions.

      U910 Trolley

      Transport width

      5990 mm

      Weight

      3815 kg

      Track width

      2400 mm

      Animation 360o

      Take a closer look

      Poznaj Vikinga z każdej strony, dzięki animacji 360o.

        wheels 550/45-22,5

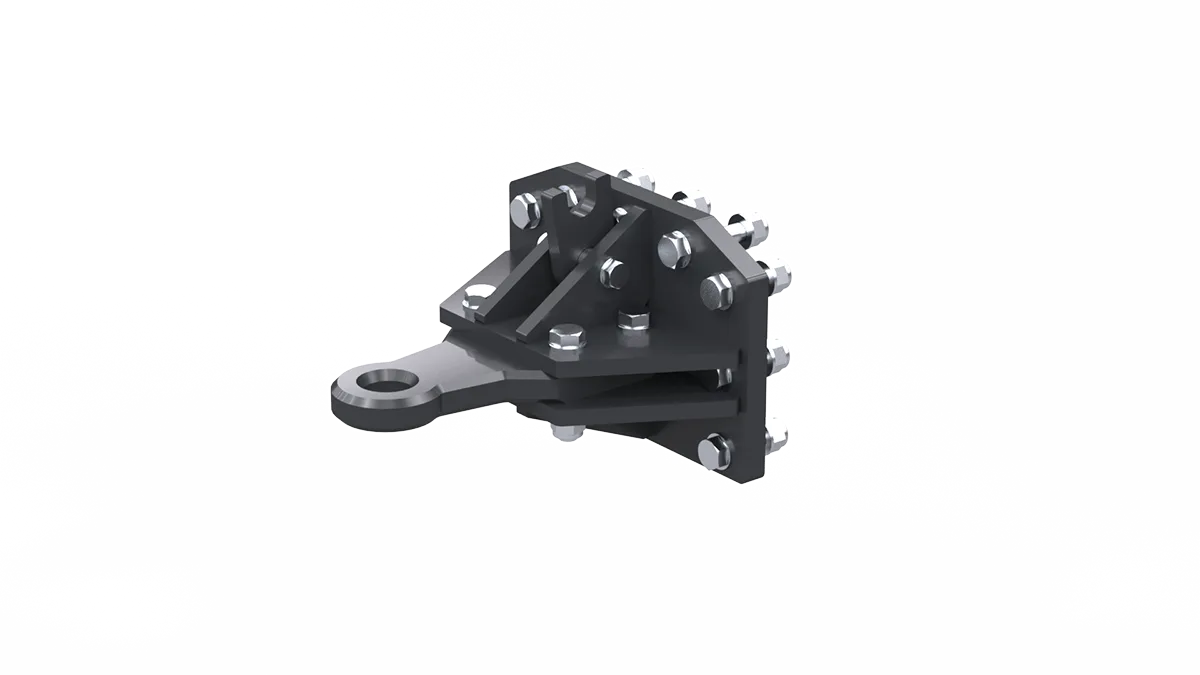

        Drawbar eye ø58mm

        The carrier has EU certification.

        Intensive and fast cultivation

        Equip yourself according to your needs

        Nośnik narzędzi jest maszyną przeznaczoną do agregowania dwóch takich samych urządzeń firmy Metal-Fach. W zależności od wykonywanych prac możliwe jest podłączenie agregatu talerzowego lub kultywatora sprężynowego.

        Stubble Cultivator
        The U786 short disc harrow is used for shallow and ultra shallow stubble cultivation. It is perfect for removing nests of European corn borer from maize fields. Great efficiency is achieved by high machine speed and 8-meter operation width.

        Field Cultivator
        The U457 cultivator is used for pre-sowing cultivation with optimum working depth of 11cm, achieved by simple mechanical adjustments. Three rows of teeth with dimensions of 32 x 12mm each and wide selection of rollers allow working on fields with both: compact and clay structures.

        Customise

        Compare and choose your trolley's colour

        The equipment shown in the photos may vary depending on the version chosen.

        Technical specification

        Tool Carrier

        Model U910
        Implement truck
        To U786 and U457
        Transport width / height / length [mm] [mm]
        5990 / 2980 / 1720
        Weight [kg]
        3815
        Wheels spacing [mm]
        550/45-R11,5
        Track width [mm] [mm]
        2400
        Transport speed [km/h]
        25

        Standard equipment

        • drawbar eye Ø58mm
        • Parking jack
        • Tires 550/45-R22, 5
        • Handbrake
        • Dual-circuit pneumatic / hydraulic brakes
        • Toolbox
        • Lighting

        Optional equipment

        • Hamulce hydrauliczno-pneumatyczne – dopłata*

        Photo gallery

        Implement truck

        Video

        Modular “MEGA” system
