Mounted disc harrow

U741 Raven Light

The disc tillage and seeding unit is a versatile tool for cultivating the topsoil layer at depths ranging from 5 cm to 15 cm.

Description
Documents

Universal

It is designed for both post-harvest cultivation and for pre-sowing soil preparation after plowing and after no-till cultivation, when plant residues are not covered but mixed with the upper (top) layer of soil (so-called mulching).

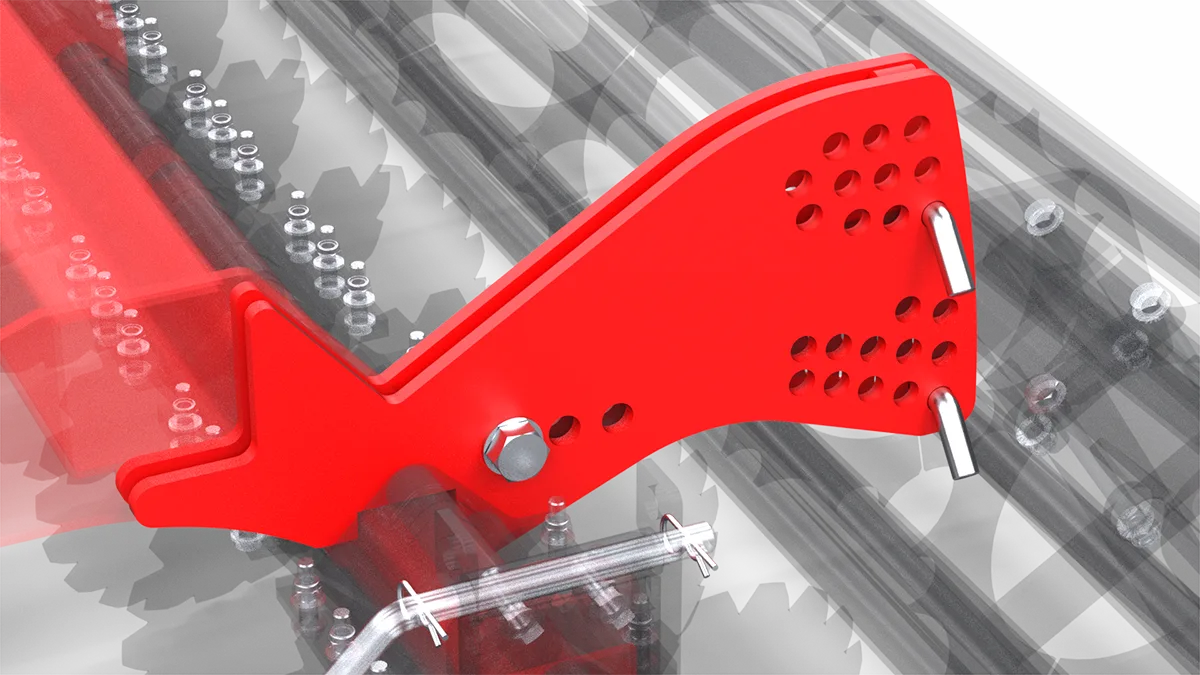

Mechanical depth adjustment – ensures precise depth adjustment.

Rubber shock absorbers prevent permanent deformation of the STRENX arm.

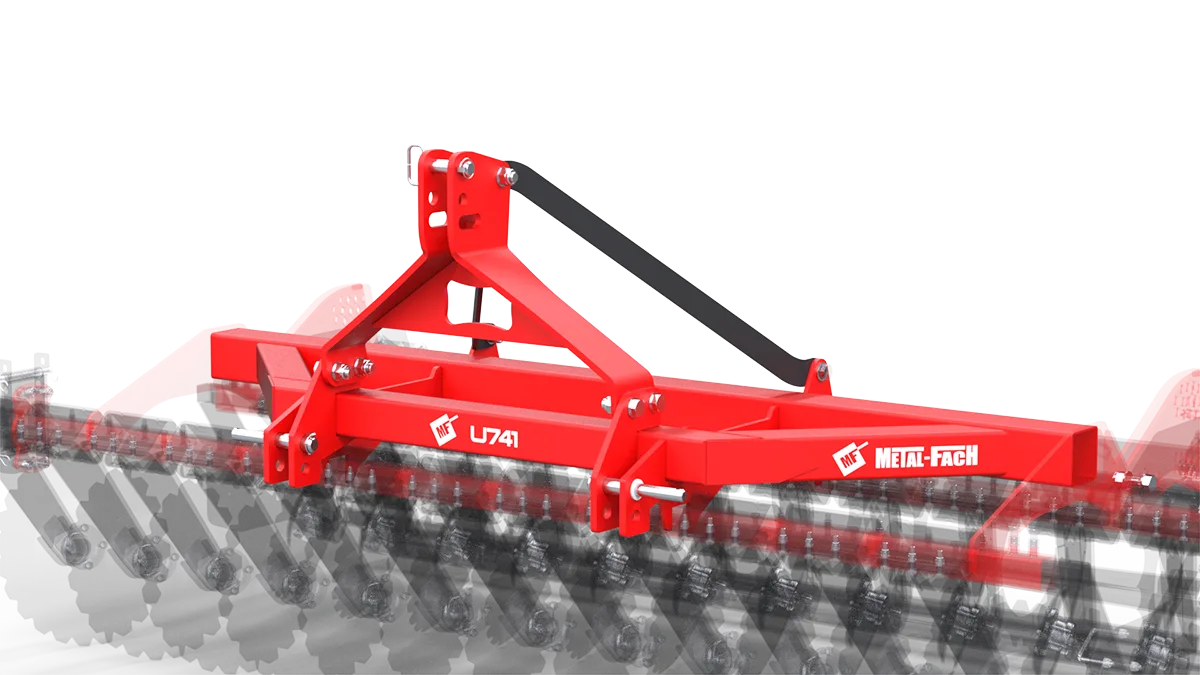

Removable three-point attachment for the upper suspension point – ensuring ease of transport to the customer

STRENX-type disc support facilitates the transport of soil masses between the rows of discs, especially when dealing with a large amount of crop residues

Technical details

Model U741 Raven Light

Box painting

The equipment shown in the photos may vary depending on the selected version.

U741/25

Working width
2.5 m
Working depth
5-15 cm
Number of discs
20 pcs.

U741

Working width
3.0 m
Working depth
5-15 cm
Number of discs
24 pcs.

U741/1

Working width
4.0 m
Working depth
5-15 cm
Number of discs
34 pcs.

Disc harrow equipment

What comes standard:

  • 2 rows of discs ø510, edge ø460
  • Mechanical working depth adjustment
  • Maintenance-free hubs
  • Soil screeners – side discs limiting the soil falling beyond the work area
  • STRENX-type disc support facilitates the transport of soil masses between the rows of discs, especially when dealing with a large amount of crop residues

Additional equipment:

  • SKF / NKE hubs
  • Tubular roller ø600
  • packer roller ø500
  • Discs fi 510 #6mm large cutouts
  • Discs fi 560 with standard cuts
  • Discs fi 560 #6mm large cutouts
  • Painting the frame in a color other than the standard – extra charge

Efficiency on every hectare

We deliver valuable and functional solutions that meet your specific needs and help you achieve better results in the field.
