Reliable Raven Opti
The soil to be cultivated must be crumbled and loosened first. The U710 RAVEN OPTI disc cultivators by Metal-Fach can effectively cope with this task. They allow a working width from 4,5 to 7 m.
U710
U710
Home / Products / Cultivators /
U710 RAVEN OPTI Seed Disc Cultivator
Working width
4,5 m
Number of discs
36 pcs.
Diameter of main discs
Ø560 mm
Working width
5,0 m
Number of discs
40 pcs.
Diameter of main discs
Ø560 mm
Working width
6,0 m
Number of discs
48 pcs.
Diameter of main discs
Ø560 mm
Working width
7,0 m
Number of discs
58 pcs.
Diameter of main discs
Ø560 mm
Animation 360o
Take a closer look
Poznaj Vikinga z każdej strony, dzięki animacji 360o.
Hydraulic depth adjustment – ensures precise depth adjustment
Rubber shock absorbers prevent permanent deformation of the STRENX arm.
SKF maintenance-free hubs ensure long and trouble-free operation
STRENX-type disc support facilitates the transport of soil masses between the rows of discs, especially when dealing with a large amount of crop residues
Scrapers – direct the soil under the discs and under the rollers for excellent crumbling
In standard, 560mm diameter discs with a thickness of 4 mm.
OPTION: 560mm diameter discs with a thickness of 6 mm and larger cutouts.

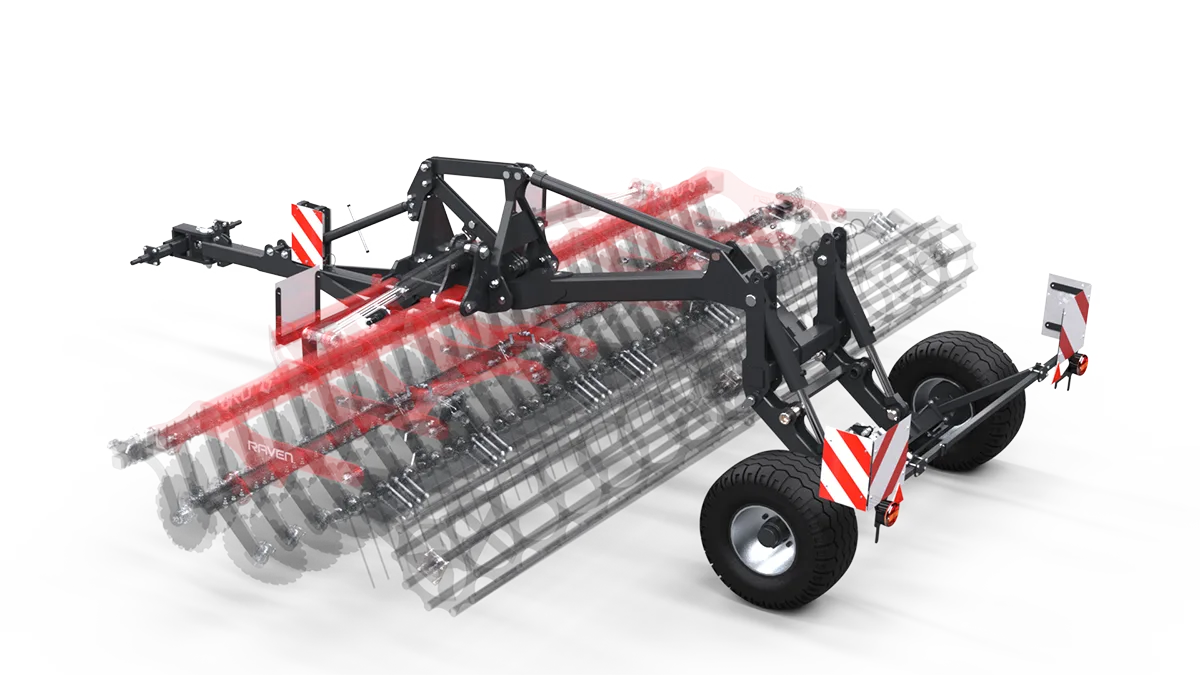

Trolley for the soil cultivation and seeding unit for versions above 4.5m
LED signal lights for the semi-mounted unit version compliant with EU homologation
OPTION: Side screens to limit soil spillage outside the working area
OPTION: Disc side screens to limit soil spillage outside the working area
OPTION: Floating edge screens – to limit soil spillage outside the working area.

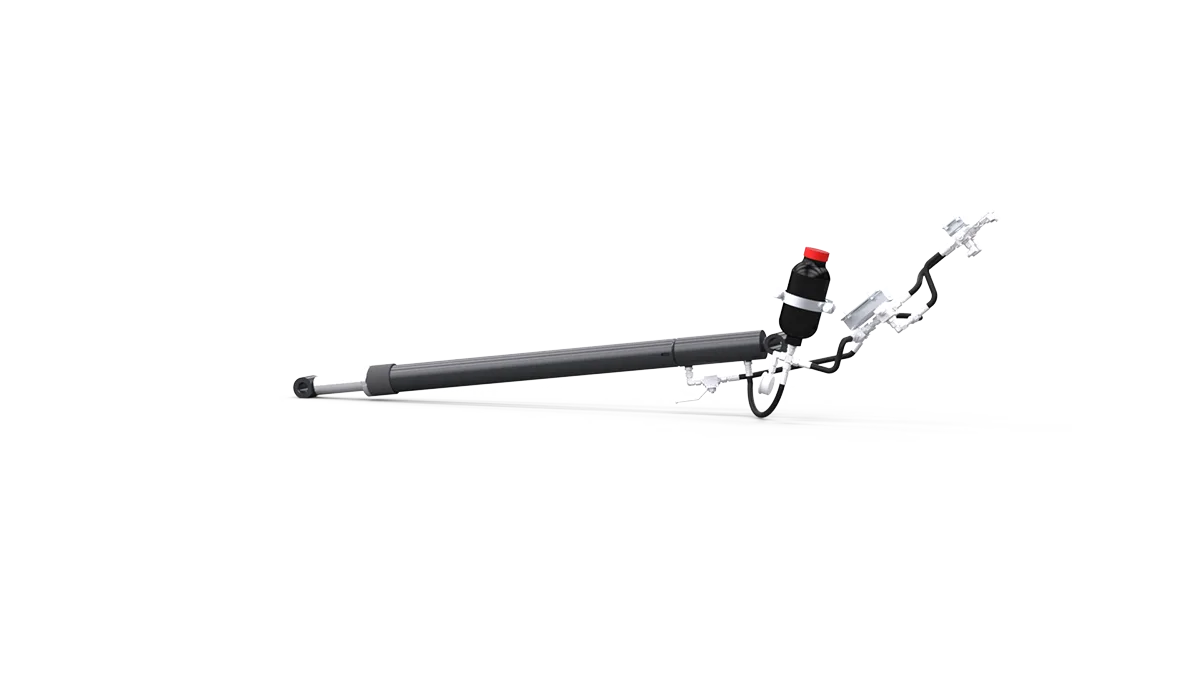

Option: Anti-shock system MF-SAW

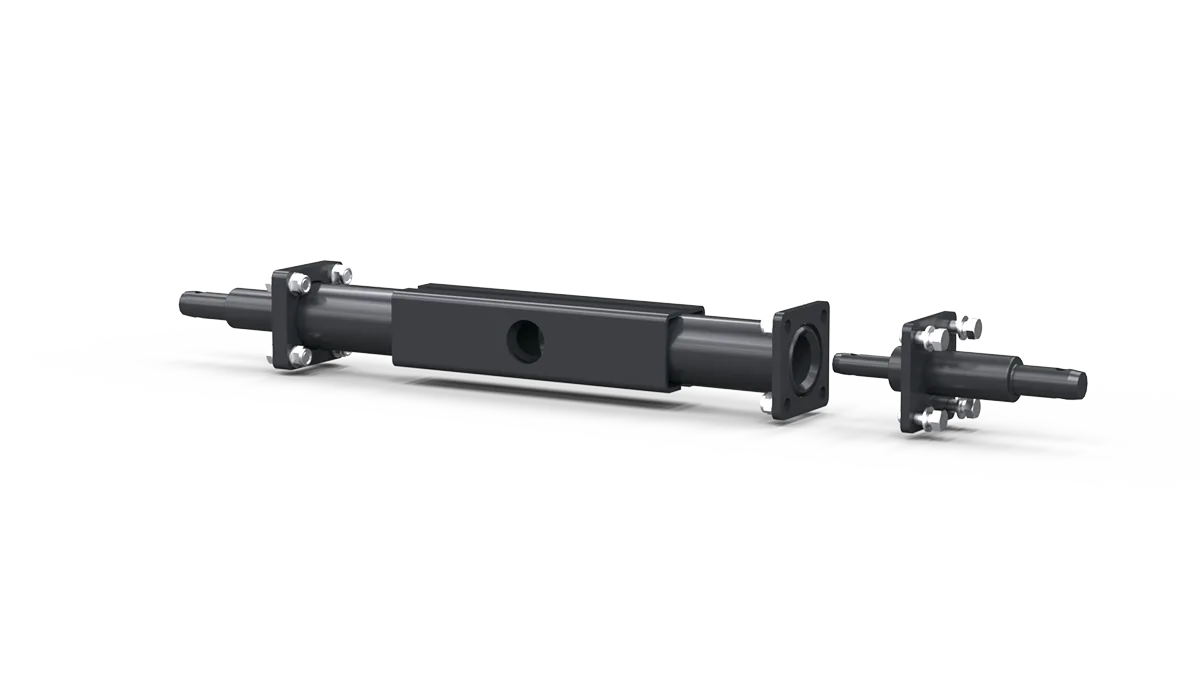

Rotary category 3/4 beam

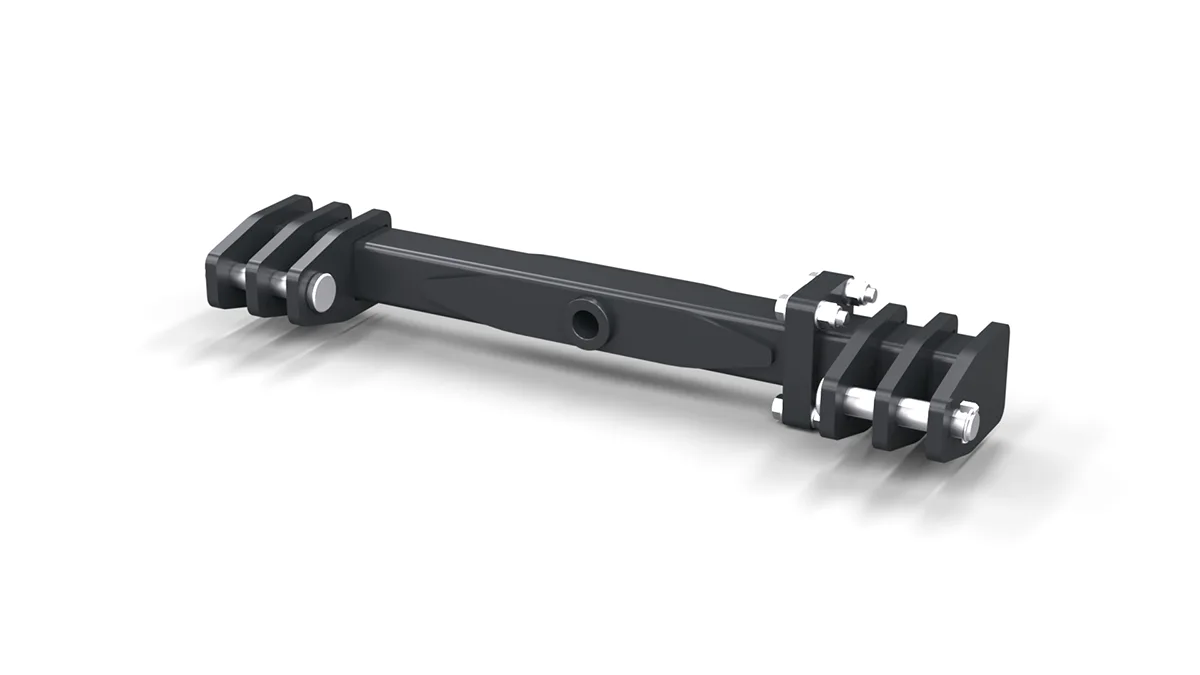

Option – CLEIVS beam

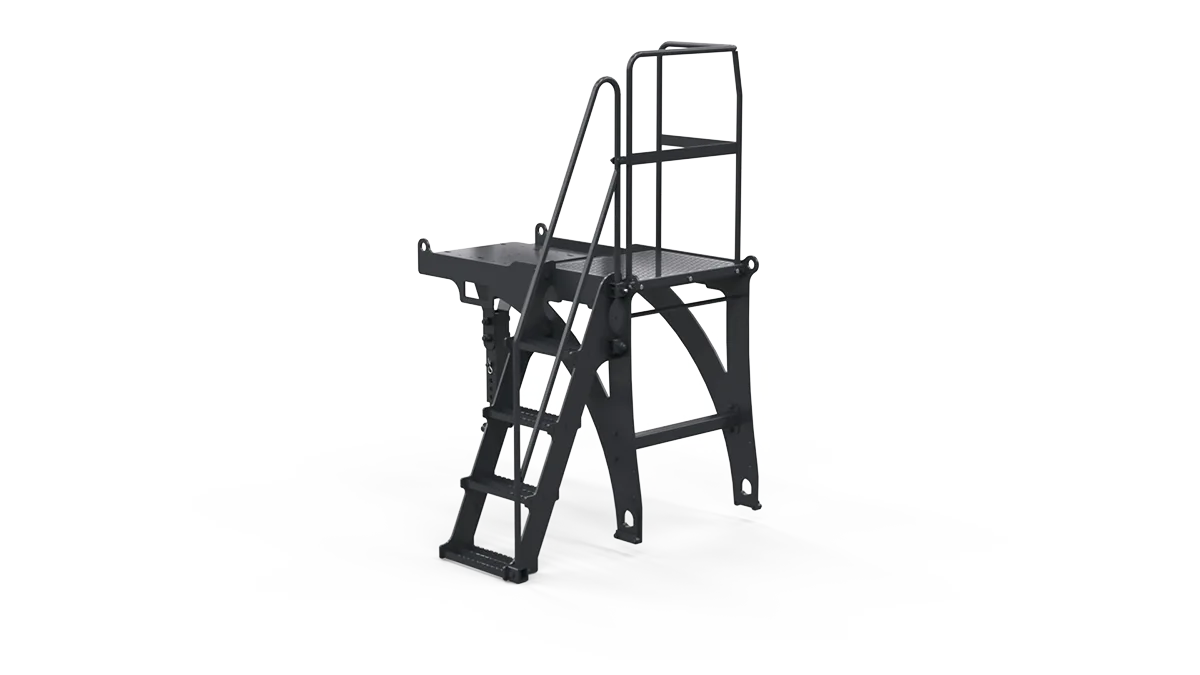

OPTION; Trailed cultivator seeder platform
Customise
Compare and choose your cultivator's colour
The equipment shown in the photos may vary depending on the version chosen.
Technical specification
U710 RAVEN OPTI
| Model | U710/45 | U710/50 | U710/60 | U710/70 |
|---|---|---|---|---|
|
Working width [m] |
4,5 |
5,0 |
6,0 |
7,0 |
|
Number of discs main + side [pcs.] |
34 + 2 |
38 + 2 |
46 + 2 |
56 + 2 |
|
Diameter of main discs [mm] |
Ø560 / Ø510 |
Ø560 / Ø510 |
Ø560 / Ø510 |
Ø560 / Ø510 |
|
Disc row spacing [cm] |
80 |
80 |
80 |
80 |
|
Power demand depending on the type of soil [HP] |
150-200 |
160-220 |
170-240 |
280-340 |
|
Weight of the unit w/o roller [kg] |
2620 |
2950 |
3060 |
3450 |
Standard equipment
- 2 rows of discs ø560, edge ø510
- hydraulic working depth adjustment
- rubber shock absorbers
- scrapers
- maintenance-free hubs SKF / NKE alternatively
- STRENX arms
Optional equipment
- 560mm diameter discs with a thickness of 6 mm and larger cutouts.
- Pipe roller ø600
- Packer roller ø500 – U710/45, U710/60
- U-box roller ø500
- Double U-box roller
- V-ring roller
- DD heavy roller
- DD HD heavy roller
- String roller – U710/45, U710/60, U710/70
- Crushing and kneading roller – U710/50, U710/60, U710/70
- Overload / block valve
- Side plates
- Side discs
- Side discs – floating
- Hinged cultivator seeder platform
- Trailed cultivator seeder platform
- Land levellers (to version with trolley suggested LONG drawbar) – U710/45, U710/60
- Lights LED – hinged
- Painting the frame in a color other than the standard – extra charge
Trolley
- Trolley without brakes
- Trolley with hydraulic brakes
- Trolley with 2-line hydraulic brakes (EU homologation)
- Trolley with 2-line pneumatic brake (type of homologation EU)
- Extended version of trolley – drawbar LONG
- Drawbar floating regulation – extra charge
- Anti-shock system MFSAW – extra charge
- CLEVIS beam – extra charge
- Lights LED to trolley – required for EU approval
- Lights LED to trolley
