Quick and reliable

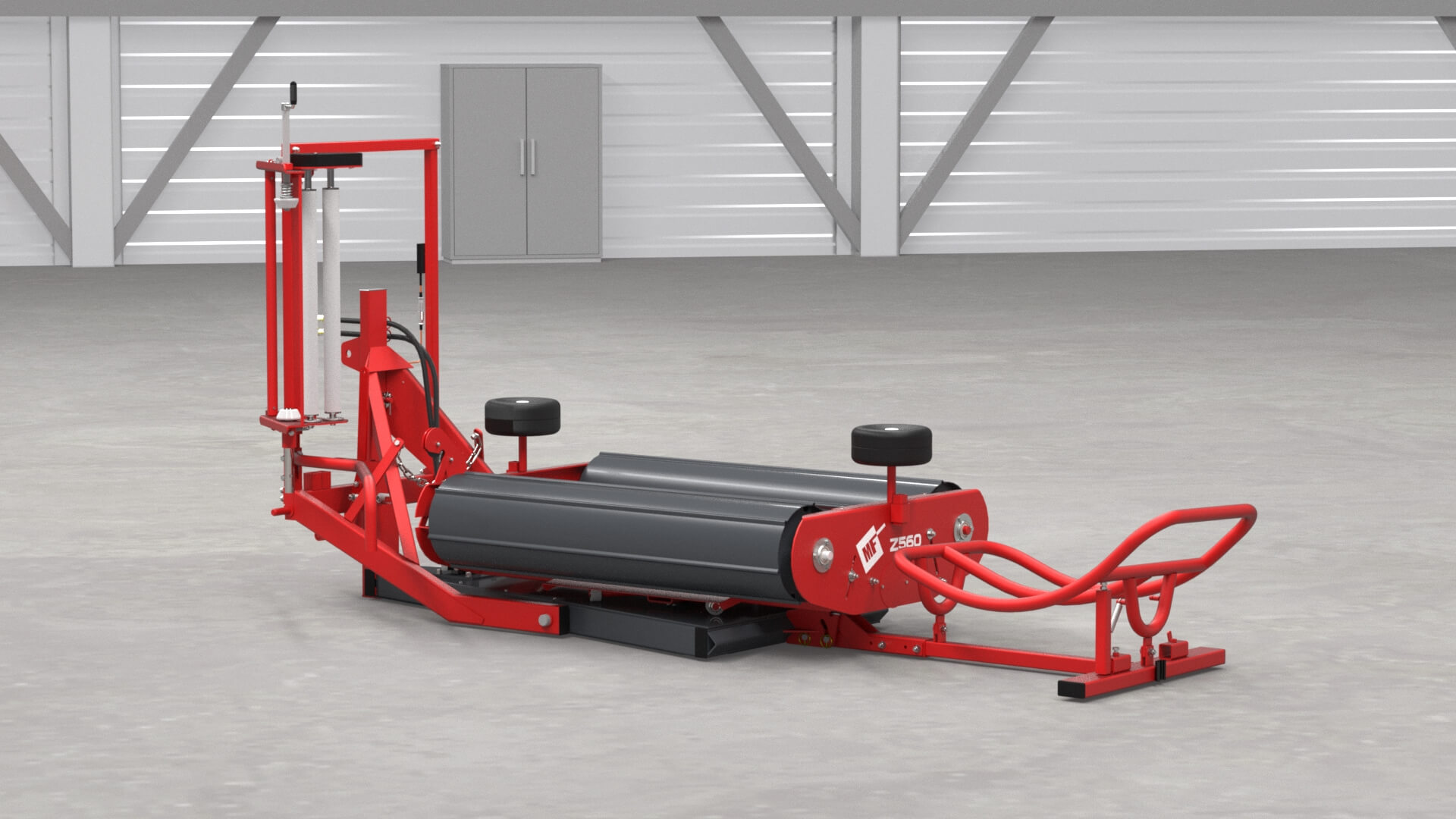

The Z560 Bale Wrapper is designed for stationary operation.
The Z560 Bale Wrapper is designed for stationary operation.
1000-1200 mm
1200 mm
450 kg
Take a closer look
Explore the Z560 from all sides with a 360o animation.
The Bale Wrapper is intended for wrapping single bales of semi-dry hay from grass and papilionaceous plants in the stationary mode. It is mounted on the three-point linkage of the tractor.

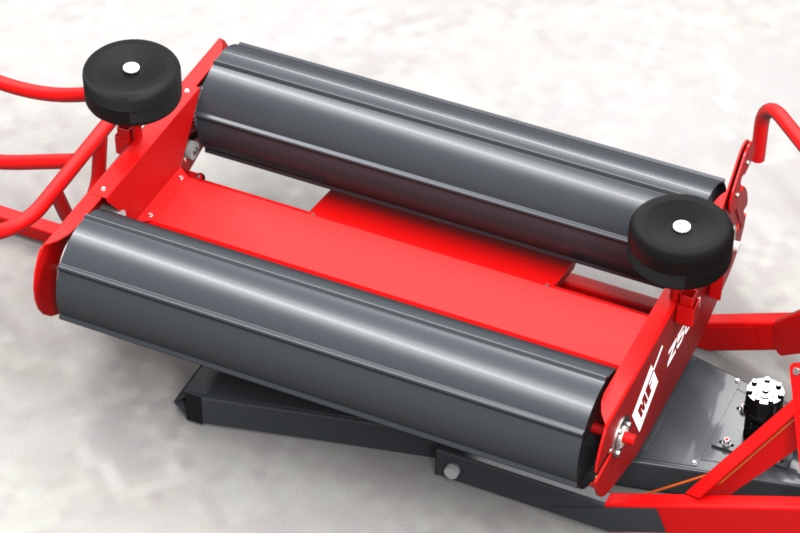

The Bale Wrapper is equipped with two rollers that give more stability and better bale handling. The embossing on the wrapping reels increases their strength and prevents the bale from slipping.
The versatile film feeder allows the use of 500 m and 750 mm wide film. The aluminium, knurled rollers guarantee the correct pre-tensioning of the film.
The wrapper is equipped with a film cutting blade.
Optionally, the Z560 can be equipped with a reliable bale tipper. The bale tipper allows the rolled bale to be positioned vertically when unloading, reducing the risk of damage to the bale wrapping film.
The L-01 counter is an electronic device that counts and informs the user about the number of bales wrapped.
| Model | Z560 |
|---|---|
|
Length [mm] |
2670 |
|
Width [mm] |
1200 |
|
Height [mm] |
1700 |
|
Weight [kg] |
450 |
|
Coupling with tractor |
Three-point hitch |
|
Machine drive |
hydraulic |
|
Tractor power [kW] |
min. 30 |
|
Recommended capacity of tractor pump [l/min] |
22 |
|
Required pressure of tractor hydraulic actuator system [MPa] |
14 |
