T736 Single-Axle Agricultural Trailer - Metal-Fach

Lightweight

Metal-Fach agricultural trailers boast precision, durability and reliability of their construction, high efficiency and comfort of use. The T736 is the lightest single-axle trailer.

T736

Contact us

Questions? We are here to answer your questions.

    T736

    Contact us

    Questions? We are here to answer your questions.

      T736 Single-Axle Agricultural Trailer

      GVW

      1490 / 2240 kg

      Load Capacity

      840 / 1500 kg

      Capacity

      1,6 m3

      Animacja 360o

      Przyjrzyj się bliżej

      Poznaj T248 z każdej strony, dzięki animacji 360o.

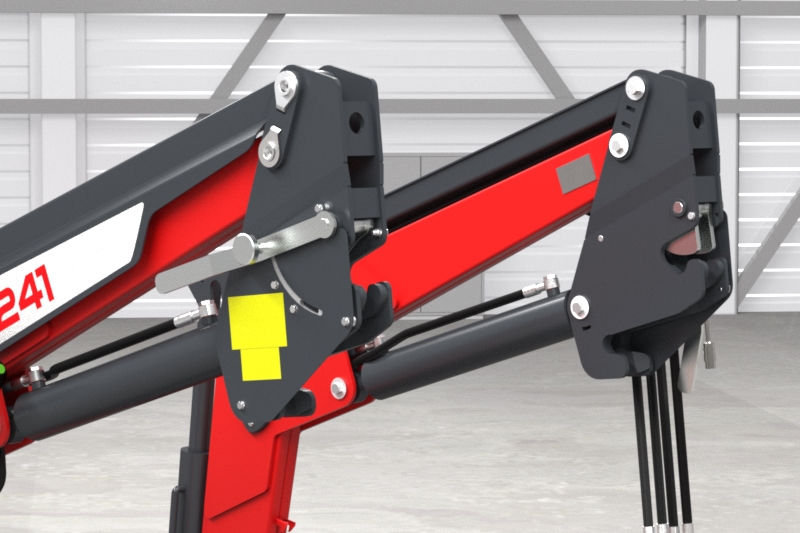

      Mocowanie na ciągniku

      Opatentowany system najazdowy zapewnia szybkie podłączenie wysięgnika do ciągnika.

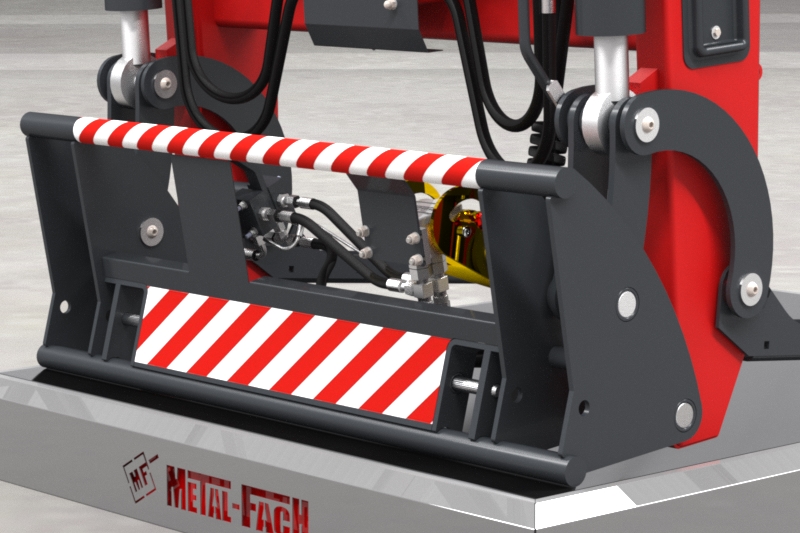

      Mocowanie osprzętu

      Szybka i wygodna wymiana osprzętu dzięki ramie EURO. Blokada osprzętu odbywa się szybko i sprawnie za pomocą jednej dźwigni umieszczonej z boku ramki.

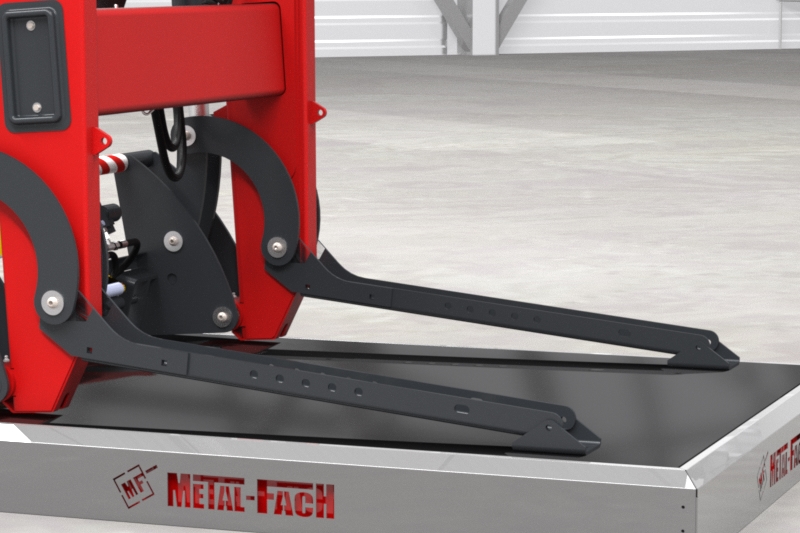

      Stopki podporowe

      System podporowy zapewnia odpowiednią stabilność w czasie przechowywania. Nie wymaga narzędzi. Ułatwia odczepianie i przyczepianie wysięgnika.

      Cechy

      Poznaj pozostałe zalety

      Customise

      Compare and choose your Trailer colour

      The equipment shown in the photos may vary depending on the version chosen.

      Technical Specifications

      T736

      Model T736/1 T736A
      GVW [kg]
      1490
      2240
      Load Capacity [kg]
      840
      1500
      Brake type
      -
      1-line pneumatic brake
      Approved load capacity [kg]
      840
      1500-1630
      Weight [kg]
      650
      610-740
      Total length / Total width / Total height [mm]
      3600 / 1770 / 1220
      3600 / 1770 / 1220
      Load space length / width / height [mm]
      2540 / 1540 / 400
      2540 / 1540 / 400
      Tipper / tipping angle (rear/sides)
      rear 35o
      rear 35o
      The specifications of the selected product (including weight / payload) may vary depending on the equipment selected.

      Standard equipment

      • side wall 400mm
      • draft pole with hitch adapter + drawbar eye Φ40mm
      • mechanic parking jack
      • wheels 10.0/80-12 10PR
      • wheel chocks 2pcs.
      • hand parking brake (only in the model T736A)
      • 1-line pneumatic brake (only in the model T736A)
      • Oświetlenie z odblaskami (only in the model T736A)

      Optional equipment

      • extension (net) 700mm
      • hydraulic brake – extra charge (only in the model T736A)
      • 2-line pneumatic brake – extra charge (only in the model T736A)
      • color other than standard – extra charge
