Feed Mixer
Horizontal Twin-Auger T705
Two horizontal augers for maximum efficiency and perfectly mixed feed.
Two horizontal augers for maximum efficiency and perfectly mixed feed.

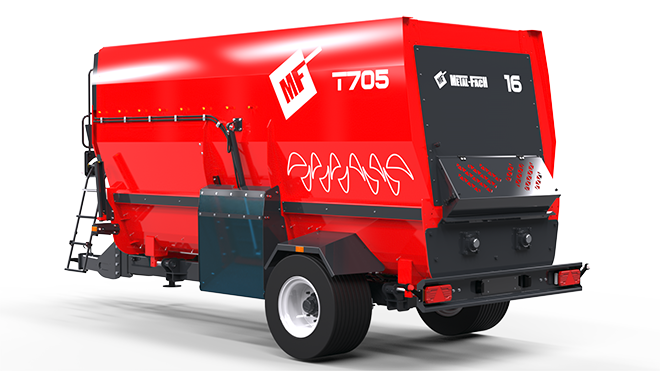

The T705 feed mixer uses a mixing system based on two horizontal augers, located at the bottom of the loading box. It is characterized by high mixing efficiency and excellent homogeneity of the prepared feed, even with a small number of components. A state of complete mixing is achieved in a relatively short period of time.
easy loading and observation of the mixing process
precise cutting of each portion
fast and even mixing
abrasion and corrosion resistance
convenient and flexible feed dispensing
reliability for years
control and analysis in the app
The durable support frame ensures the stability of the T705 feed mixer even when fully loaded, guaranteeing a long service life and safe operation in all conditions.
The single-axle design facilitates maneuvering in tight yards and livestock buildings, increasing comfort during daily operation.
Wide tires provide excellent stability while driving and reduce ground compaction, both in the yard and in the field.
The two-line pneumatic brake with manual braking force regulator and the parking brake guarantee reliable stopping and safe transport in all conditions.
The standard folding support leg facilitates connecting the wagon to the tractor, and the optional hydraulic leg further speeds up and simplifies this operation.
Standard lighting ensures good visibility and safety on the road, while optional LED lighting increases durability and comfort when working after dark.
The tank of the T705 feed mixer is made of high-quality structural steel, resistant to intensive use. The 8 mm thick S355 steel bottom guarantees high mechanical strength and structural stability even when working with heavy and wet feed components. This solution ensures a long service life of the tank and trouble-free operation for many seasons.
To increase the durability of the most heavily loaded element, the tank bottom has been lined with a 6 mm thick TIVAR 88 (polyethylene) plastic liner. It effectively protects the bottom part of the tank against abrasion and corrosion, even during intensive feed mixing. The liner is fastened with stainless steel screws and washers, which ensures its stability and resistance to moisture.
A specially designed counter-knife is mounted in the central part of the tank, which actively supports the feed mixing process. This solution improves the efficiency of component shredding and ensures a more homogeneous mixture structure. The result is better TMR quality and uniform herd feeding.

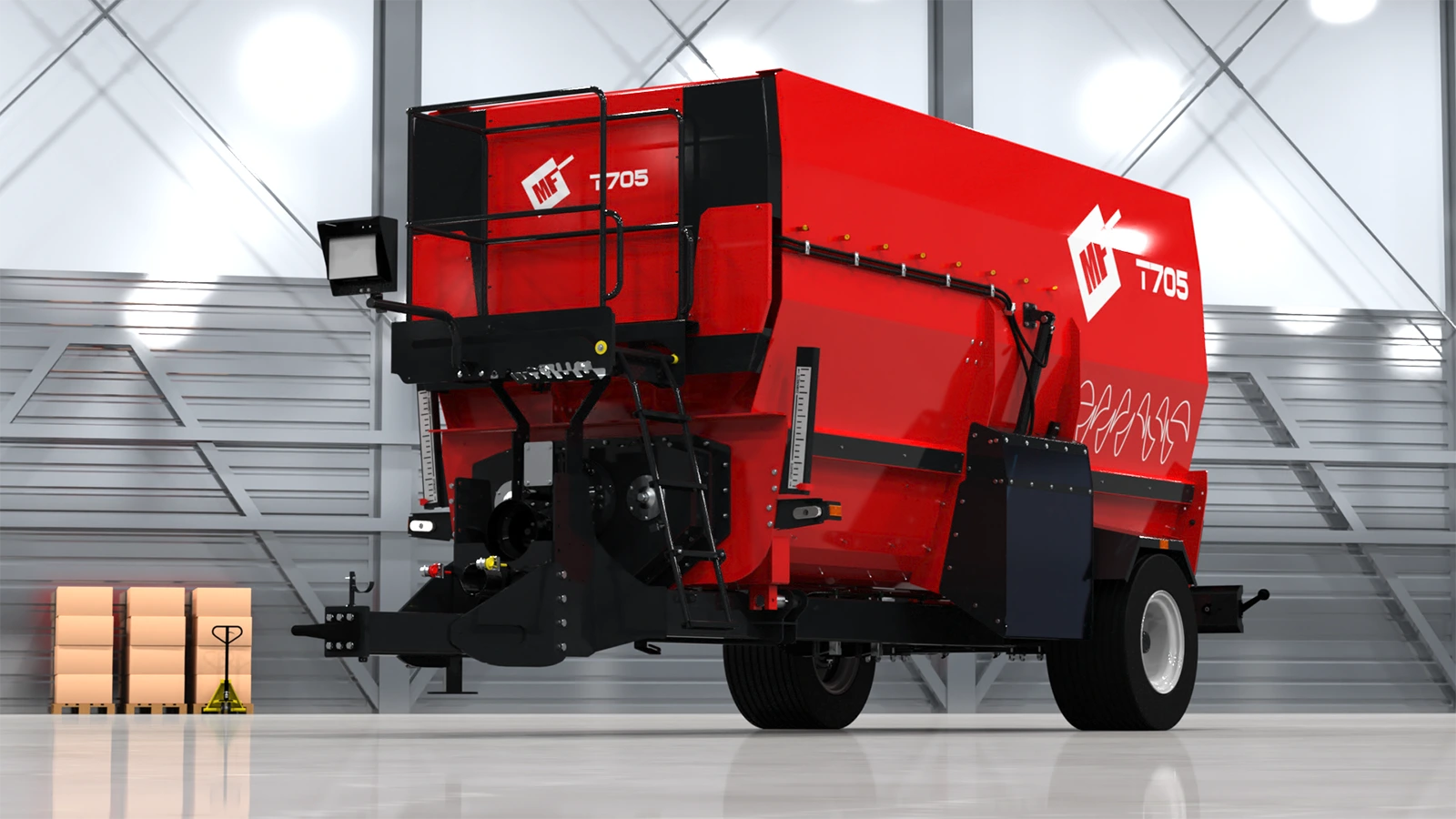

A convenient inspection platform allows for ongoing observation of the feed mixing process, increasing control over the machine's operation. The folding ladder facilitates safe access to the inside of the tank and reduces the risk of accidents during operation. This practical solution improves work ergonomics and user comfort on a daily basis.
The standard equipment of the T705 feed mixer includes a manually opened rear chute, which allows for quick and convenient loading of various types of loose feed. This solution provides good control over the loading quantity and operator comfort. An additional advantage is the ability to observe the feed mixing process without having to climb onto the inspection platform, which increases safety and convenience of operation.
The optional 0.8 m³ hydraulic loading flap allows for quick loading of larger quantities of loose feed. Thanks to control from the cab, the operator gains full control over the loading process, without the need to interrupt work. The flap can also be opened during mixing, which allows for ongoing observation of the process without climbing onto the platform. Additionally, optional adjustment of the flap's lifting and lowering speed increases precision and safety of use.
The Metal-Fach T705 feed mixer uses an efficient mixing system based on two horizontal augers, located in the lower part of the tank. This solution ensures intensive yet gentle mixing of ingredients, guaranteeing high feed homogeneity even with a small number of components. Complete mixing of the ration is achieved in a short time, which translates into fuel savings and higher work efficiency.
The augers are equipped with octagonal cutting knives that effectively support the feed shredding and mixing process. The co-rotating operation of the augers directs the material to the center of the tank, ensuring an even flow of feed and a stable mixing process. The auger flights, made of 12 mm thick S355 structural steel, guarantee high wear resistance and long service life even with intensive use.
Power transmission in the mixing system occurs through a combination of a planetary gearbox (primary drive) and a cylindrical gearbox (main drive). This solution ensures smooth and reliable operation of the augers and minimizes the risk of failure. The robust design of the drive system translates into long, maintenance-free operation without the need for time-consuming and costly service work.
