Efficient transport
Prosta obsługa, duża pojemność załadunku, szybki i bezproblemowy załadunek i rozładunek. Cechy te zawsze wyróżniały nasze przyczepy rolnicze skorupowe Metal-Fach.
TigerPower
TigerPower

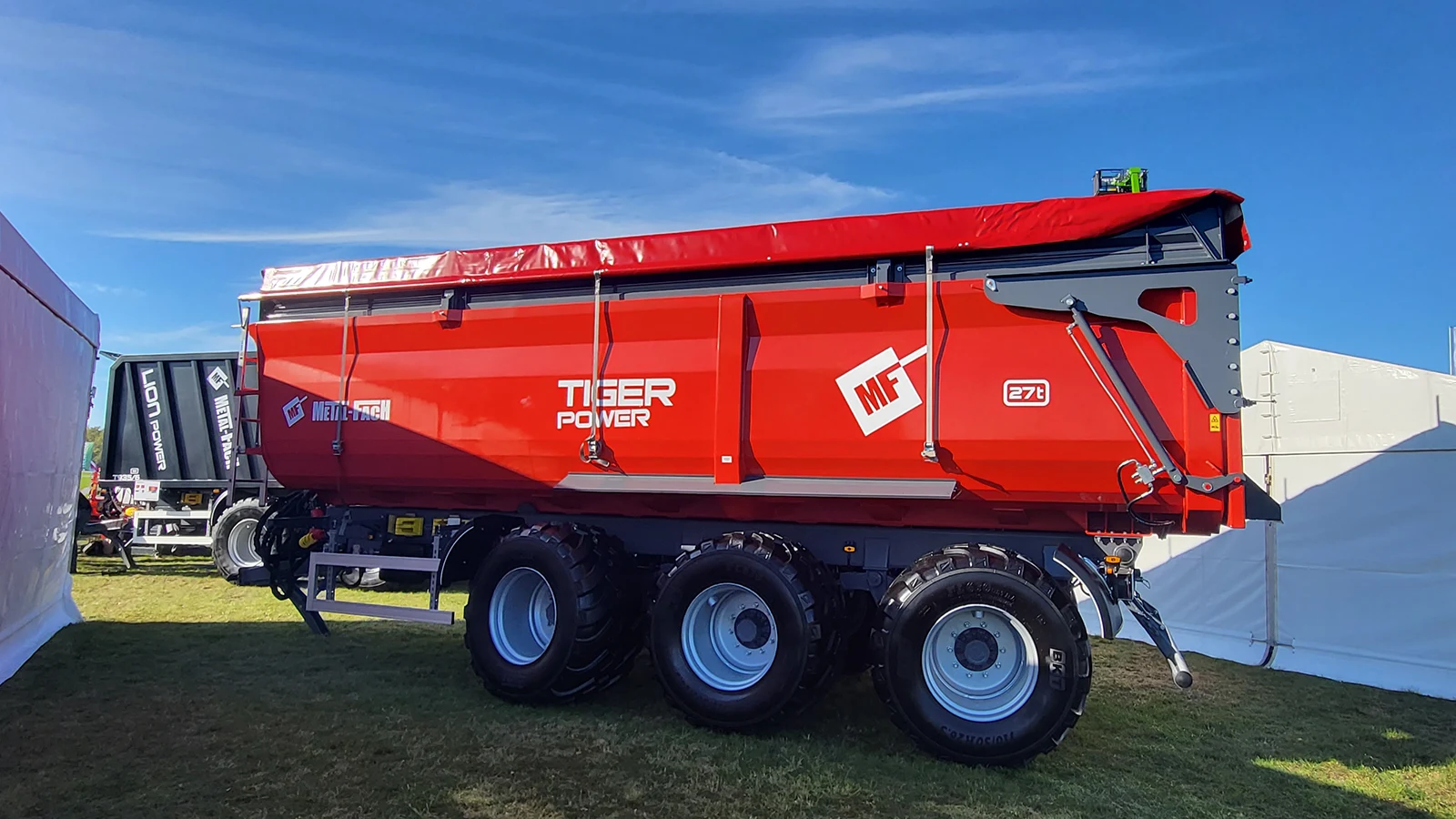

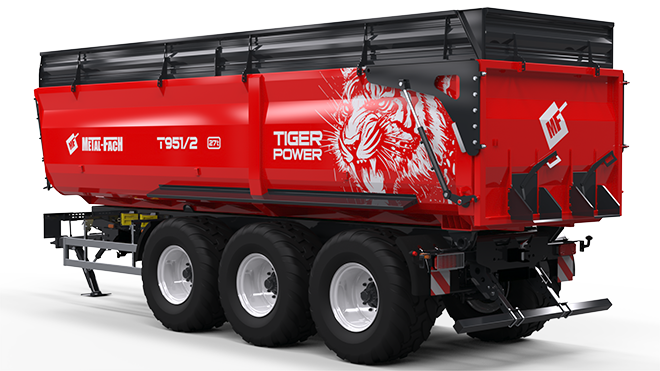

T951 TigerPower dumper trailer
Technical GVW
36 000 kg
Technical load capacity
26800 – 27500 kg
Cargo box capacity
28 m3
GVW (EU homologation)
24000 kg
EU homologated load capacity
16000-18800 kg
Capacity with 0.5m extensions
35 m3
Animation 360o
Take a closer look
Explore the TigerPower from all sides with a 360o animation.

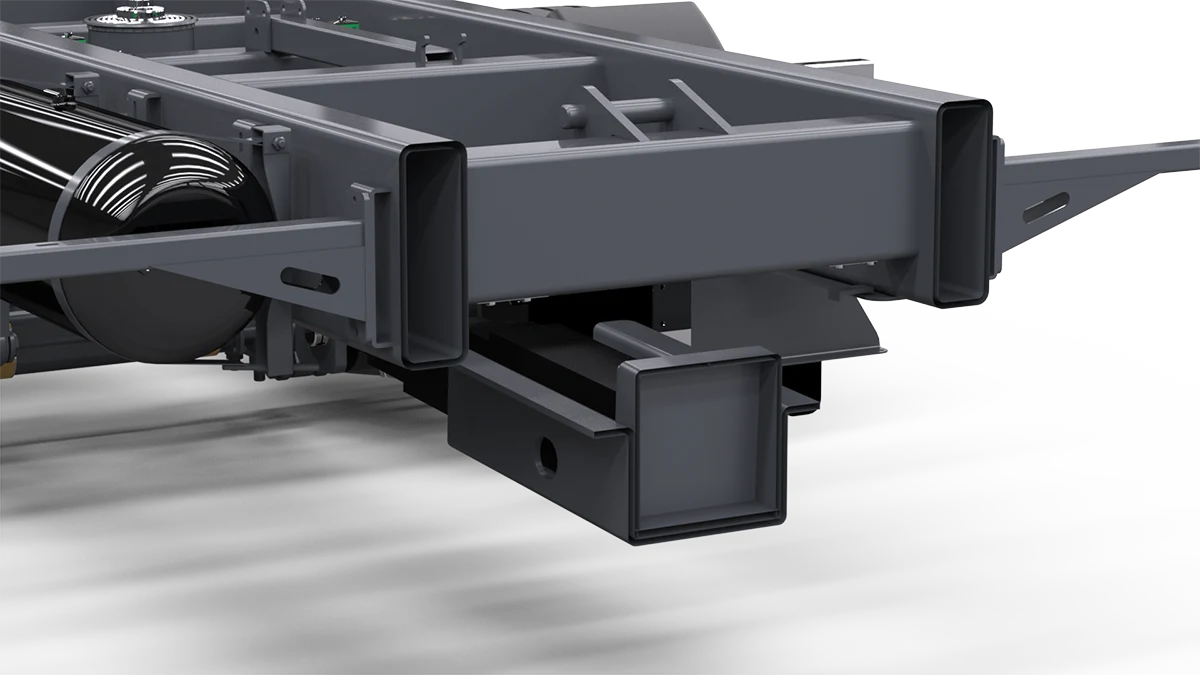

The frame structure is made of thick-walled rectangular tubing

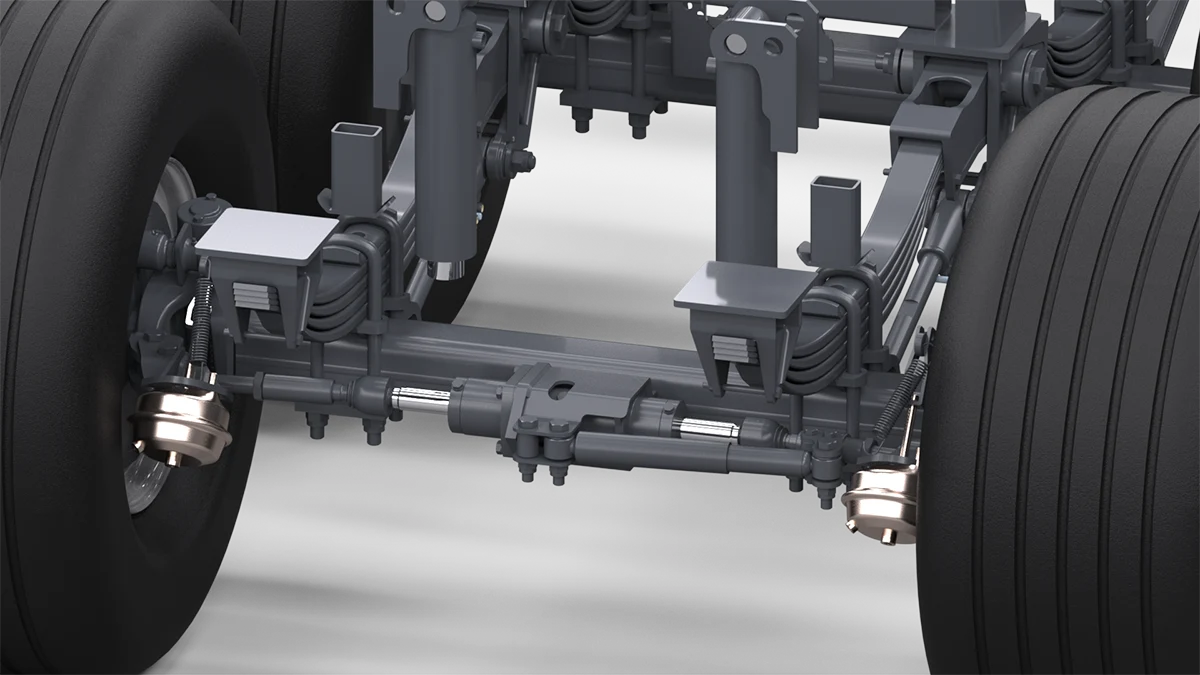

Two passive swivel axles (1 and 3) with a 120mm beam.
Three-axle suspension – TRIDEM with a 4-leaf spring.

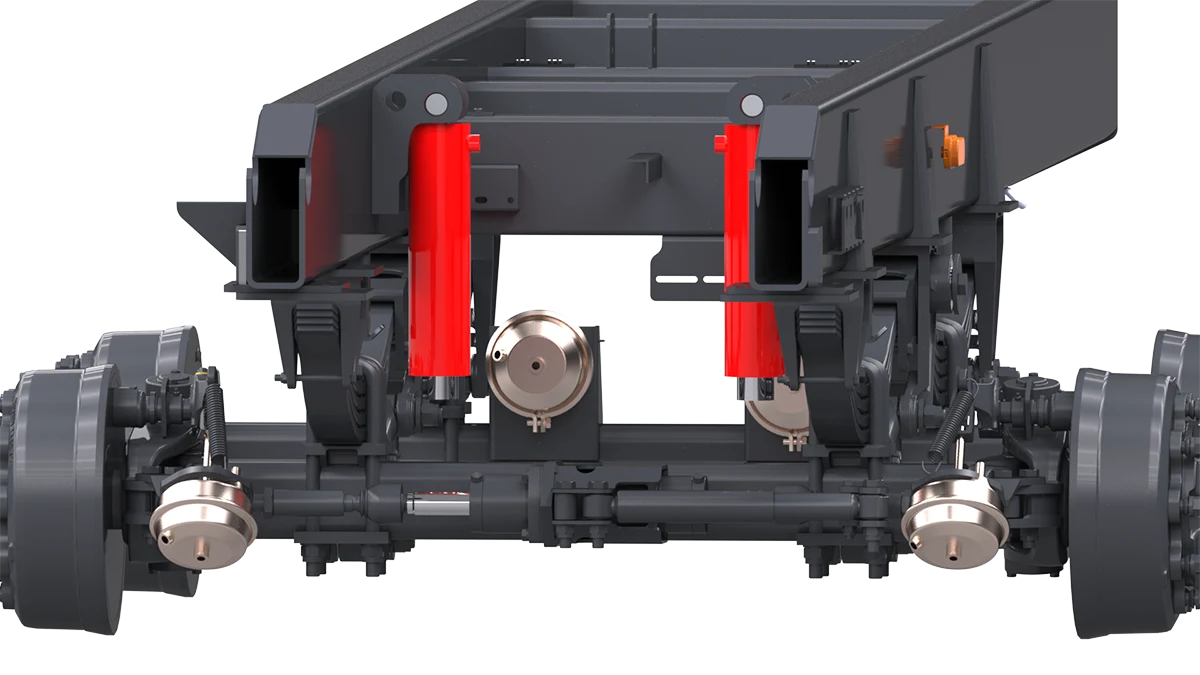

Hydraulic stabilization on the third axle.

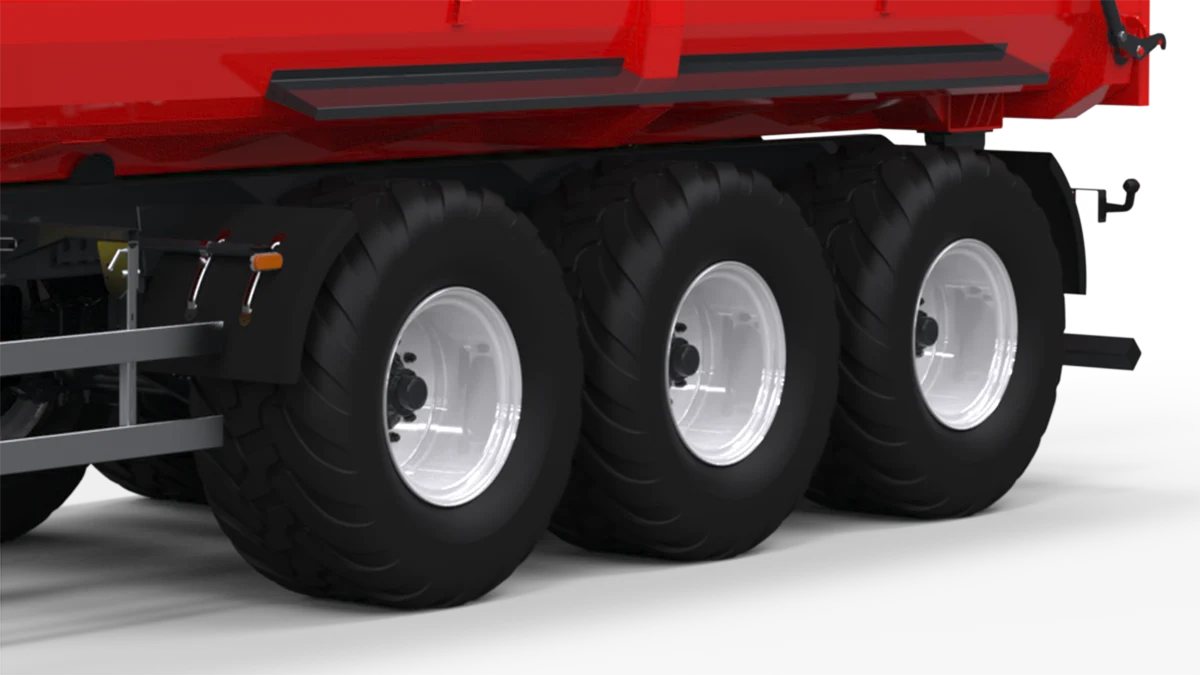

As standard, 560/60-R22.5 tires (RADIAL tires – reinforced tire construction).

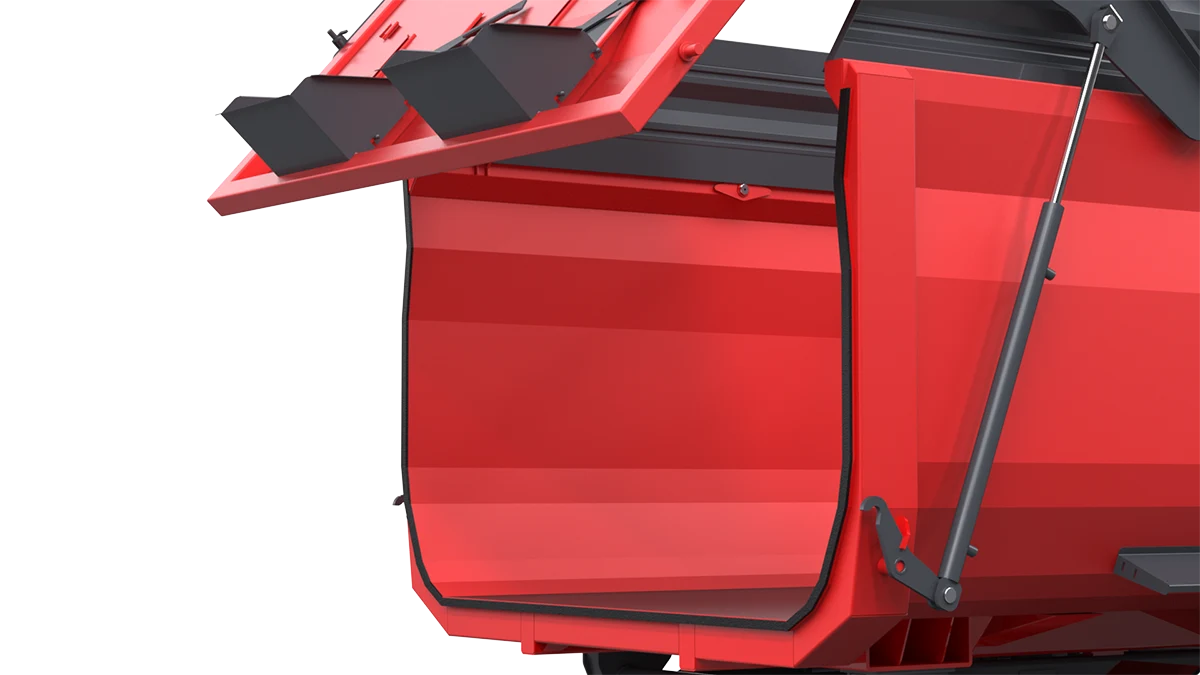

The rear tailgate has a seal, ensuring the trailer’s tightness.

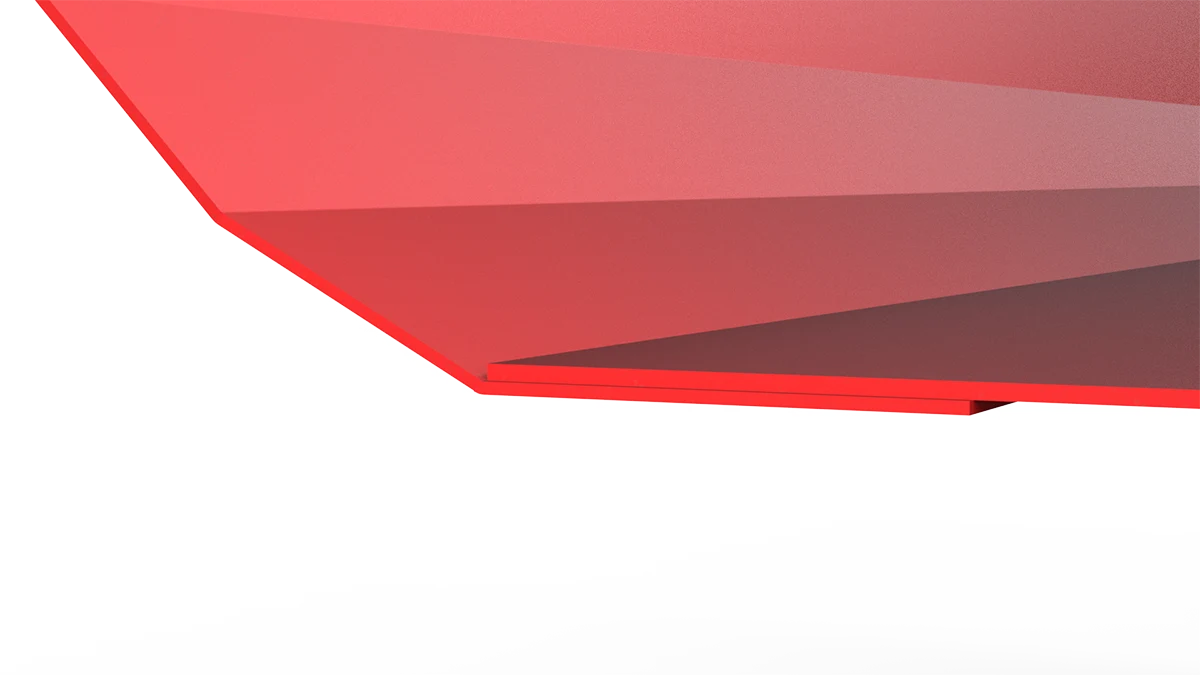

Trailer box – the floor is made of 5mm thick sheet metal, and the side walls are made of 4mm thick sheet metal.
grubości 4 mm

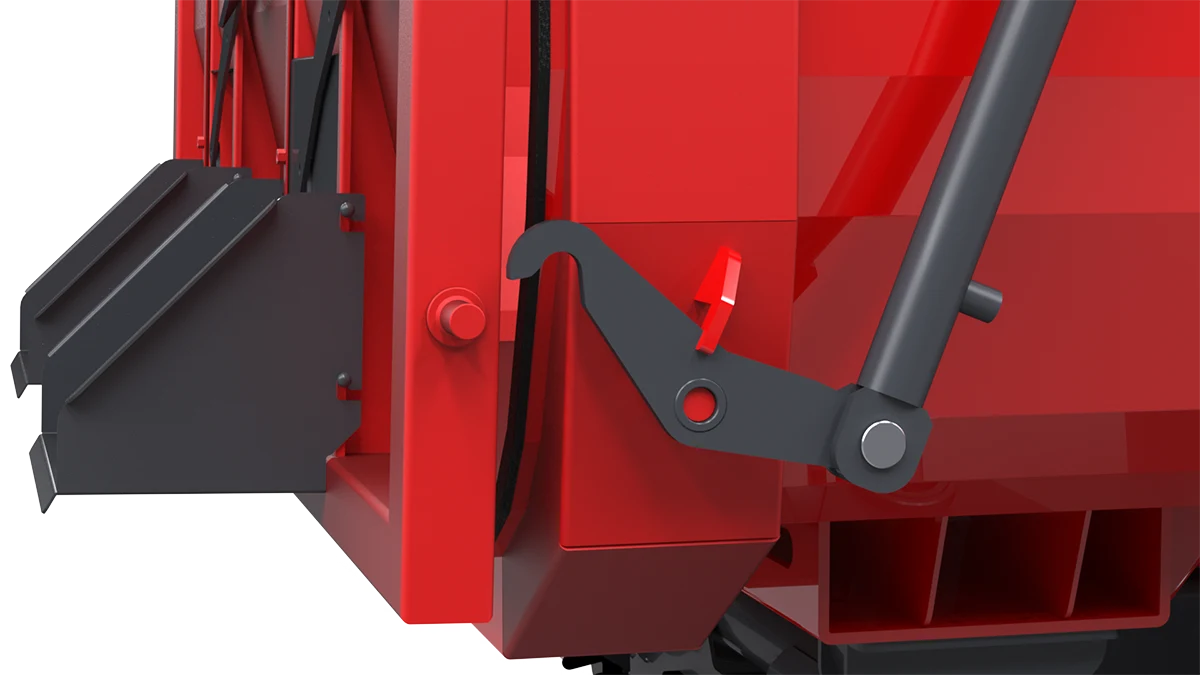

Rear tailgate hydraulically operated – hydraulic locks for the rear gate are standard.
2 discharge hatches.
Technical specification
TigerPOWER
| Model of machine | T951/2 | T951/2 |
|---|---|---|
| Type of homologation | PL | EU |
| The speed of the vehicle [km/h] | 40 | 40 |
| Technical GVW [kg] | 36000 | 36000 |
| GVW (EU homologation) [kg] | 30000 | 24000 |
| Technical load capacity [kg] | 26800-27500 | 25000-27800 |
| Homologated load capacity [kg] | 20800-21500 | 16000-18800 |
| Weight [kg] | 8500-9200 | 8200-11000 |
| Load on the hitch eye [kg] | 3000 | 3000 |
| Capacity (without extensions / with 300 extensions / with 500 extensions) [m3] | 28/32/35 | 28/32/35 |
| Length / Width / Height of the cargo space [mm] | 7900 / 2300 / 1500 | 7900 / 2300 / 1500 |
| Overall dimensions without extensions Length / Width / Height [mm] | 9700 / 2550 / 3620 | 9700 / 2550 / 3620 |
| Height of the cargo floor from the ground [mm] | 1600 | 1600 |
| Loading height [mm] | 3070 | 3070 |
| Tires | 650/55 R26,5 | 650/55 R26,5 |
| Power requirements [KM] | 190 | 190 |
| Tilt angle | 50 | 50 |
The technical data of the selected product (including weight/load capacity) may vary depending on the selected equipment.
Standard equipment
- Ladder on the front wall
- Discharge chute
- Rear tailgate raised hydraulically
- Automatic locks for the rear gate
- Flat fender above the wheels
- Inspection window on the front wall
- Parabolic suspension with a 4-leaf
- Axle 130×130 – first and third axles are passive and swivel
- Axle stabilization (rear, 1st axle)
- Fixed drawbar eye with a diameter of Φ40mm
- 6 wheels 560/60 R22.5
- Longitudinally sprung front hitch
- Frame reinforced with a steel belt
- Dual-circuit pneumatic brakes with ALB (Anti-Lock Braking System)
- Pneumatic parking brake
- Hydraulic scissor jack
- Four quarter fenders
- Water tank with soap container
- Toolbox
- Side impact guards
- Connections for the second trailer (pneumatics, hydraulics, and electrical)
- Wheel chocks 2pcs.
- Metal covers for the rear lights
- Foldable rear bumper
- Hydraulic tipping system
- LED Lights
Optional equipment
- Steel extension 300mm
- Steel extension 500mm
- Aluminium extension 600mm
- Rolled tarpaulin
- Platform with side entrance
- Internal tarpaulin for root crops
- 150×150 axle, hydraulic suspension – extra charge*
- Hydraulic-pneumatic brakes with ALB (without PL homologation) – extra charge*
- Wheels 650/55 R26,5 – extra charge*
- Wheels 710/50 R26,5 – extra charge*
- Drawbar eye Φ50mm – (without PL homologation) – alternatively
- Ball drawbar eye K80 – extra charge
- Front drawbar with eye fi 50mm, rotary
- Front drawbar hydraulic amortization – extra charge*
- Own hydraulic with PTO pomp and container
- Wrapping with an eco-solvent printing on a polymer film (2-year warranty on UV radiation)
- Color other than standard – extra charge
