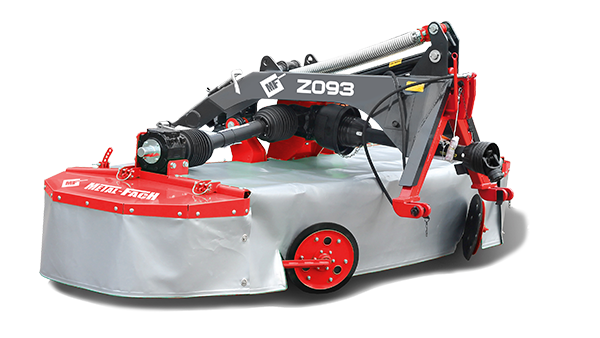

Front-mount disc mower Z093 FrontCut
The disc mower Z093 – 3 metres of working width - front disc mower is designed for larger farms. This machine works very well in combination with the rear-mounted BrurCut Z011 mower to exceed 6 metres of working width. This combination reduces cutting time and fuel consumption.
Cross covers
Protects joints of PTO shaft and transmission.
Gearbox transmission
Made by world renowned manufacturers
Top hat access flap
For easy periodic cleaning and lubrication of the bed drive coupling
Cutter bar
Failure-free bar equipped with safety device on each of seven discs
Hydraulic cylinder
For easy lifting and transport of the machine. Single-acting
Double swath wheels
Standard equipment, quick and easy swath width adjustment
Quick hitch “A” frame
Standard equipment, allows for quick aggregation to the tractor
Sprung floating suspension system
Limits the pressure of the cutter bar onto the ground and allows to follow ground contours perfectly
Technical Specifications
| Z093 | |
|---|---|
| Working width [mm] | 3000 |
| Number of discs [pcs] | 7 |
| Number of cutters [pcs] | 14 |
| Double swath wheels [pcs] | 2 |
| Working efficiency [ha/h] | 3,5 |
| PTO speed [rpm] | 1000 |
| Hitch category | II |
| Power requirement [HP] | 80 |
| Weight [kg] | 975 |
STANDARD EQUIPMENT
- 2 PTO shafts (880 nm version with friction clutch and 620 nm version with one-way clutch)
- Quick-hitch frame
- Hydraulic cylinder
- Protective tarpaulin
- Blade quick-change spanner
- Box of spare blades
- Double swath wheels
