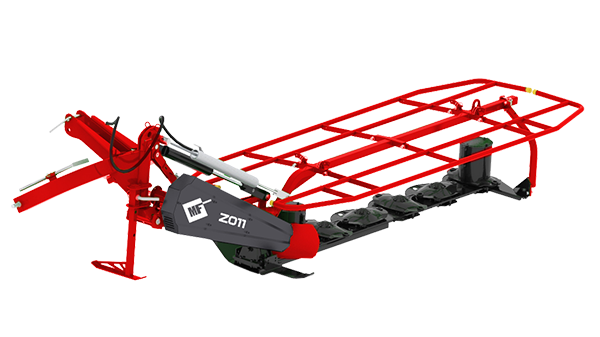

Disc mower Z011 DiskCut
The DiskCut rear-mount series disc mowers are designed for mowing forage grasses and leguminous crops. We manufacture various sized machines that will meet the expectations of the most demanding customers.
Spring-based suspension system
Springs take off the pressure of the cutter bar on the ground, extending its life
Folding front guard
Easy access to the cutter bar for blade change or maintenance
Comer cutter bar with safeDEVICE
Each disc is protected by a shear pin protection device – upon collision, the disc is disabled from the drive system. Lowers repair costs and failure rates.
Terrain copying system
0–8 degrees working range of the cutter bar
Three-point hitch
One folded 5mm profile, which significantly increases hitch durability (unlike welded profiles). Extra-reinforced with struts, cat. 2 and 3 suspension.
Belt transmission
Drive is transmitted via 4 V-belts
Technical Specifications
| Z011 | Z011/1 | Z011/2 | Z011/3 | |
|---|---|---|---|---|
| Working width [mm] | 2100 | 2500 | 2800 | 3200 |
| Number of discs [pcs] | 5 | 6 | 7 | 8 |
| Number of blades [pcs] | 10 | 12 | 14 | 16 |
| Working efficiency [ha/h] | 2 | 2,5 | 3 | 3,5 |
| PTO speed [rpm] | 540 | 540 | 540 | 540 |
| Hitch category | II lub III | II lub III | II lub III | II lub III |
| Power requirement [HP] | 30 | 45 | 60 | 80 |
| Weight [kg] | 497 | 527 | 563 | 610 |
STANDARD EQUIPMENT
- PTO shaft (460Nm, L-860, one-way clutch)
- Protective tarpaulin
- Breakback safety system
- Hydraulic cylinder
- Adjustable support leg
- Transport lock
- Quick-change blade spanner
- Box of spare blades
- Comer cutting bar with safety device
- Spring-based suspension system
OPTIONAL EQUIPMENT
- Swath wheels
